10kw 13kVA Perkins Fg Wilson Silent Canopy Type Diesel Generator
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good R......
Send Inquiry
Product Description
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good Reputation

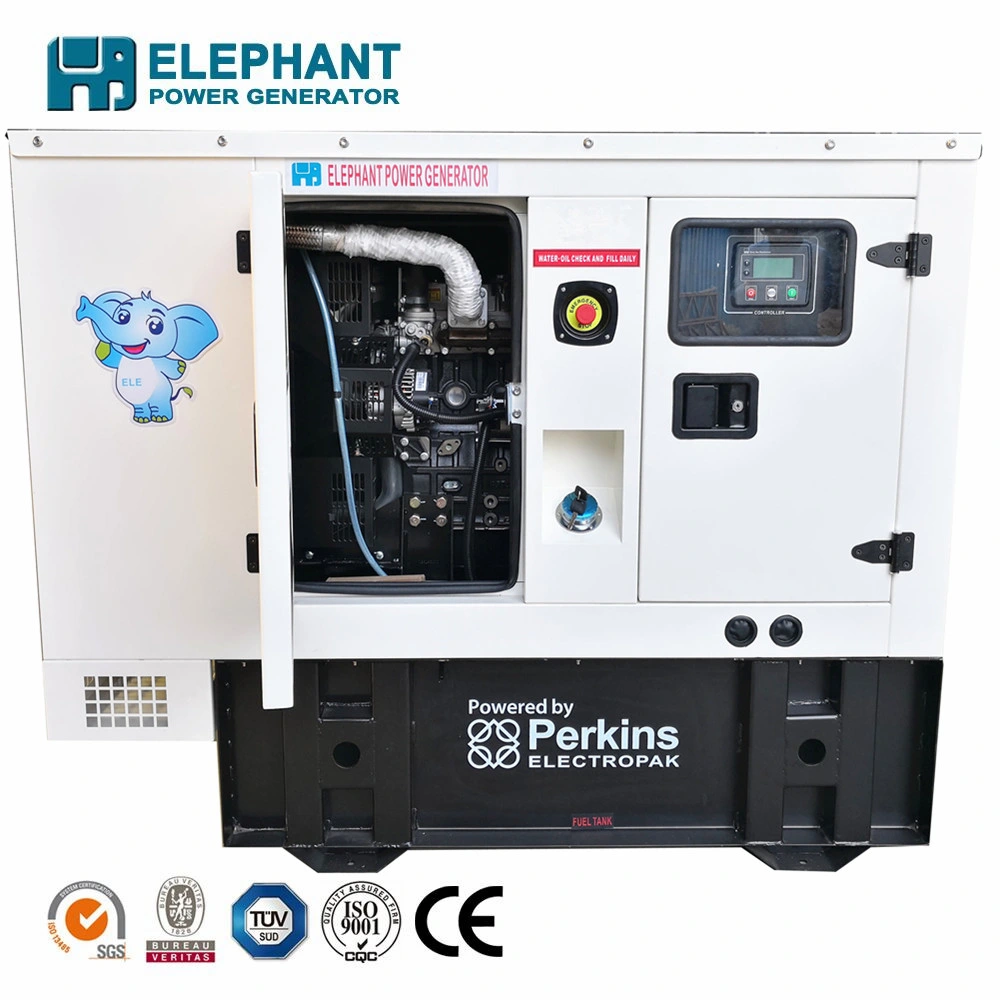

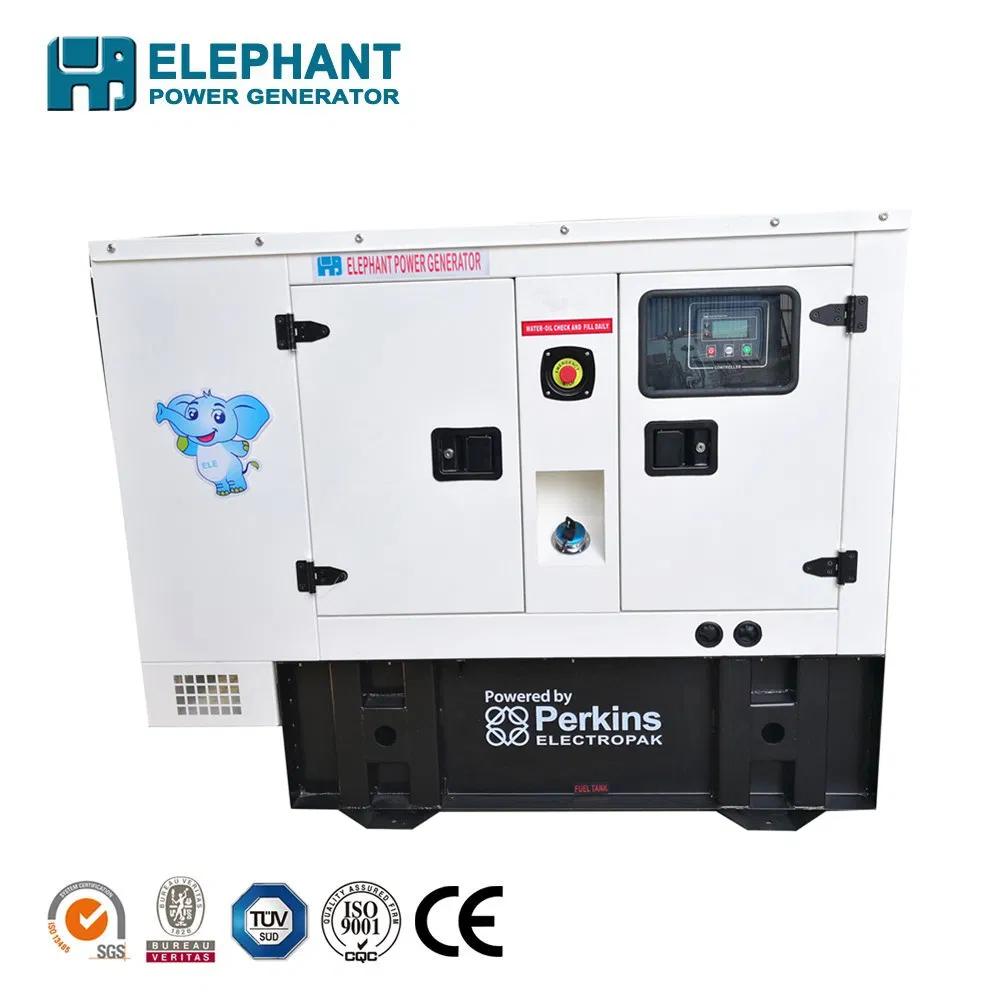

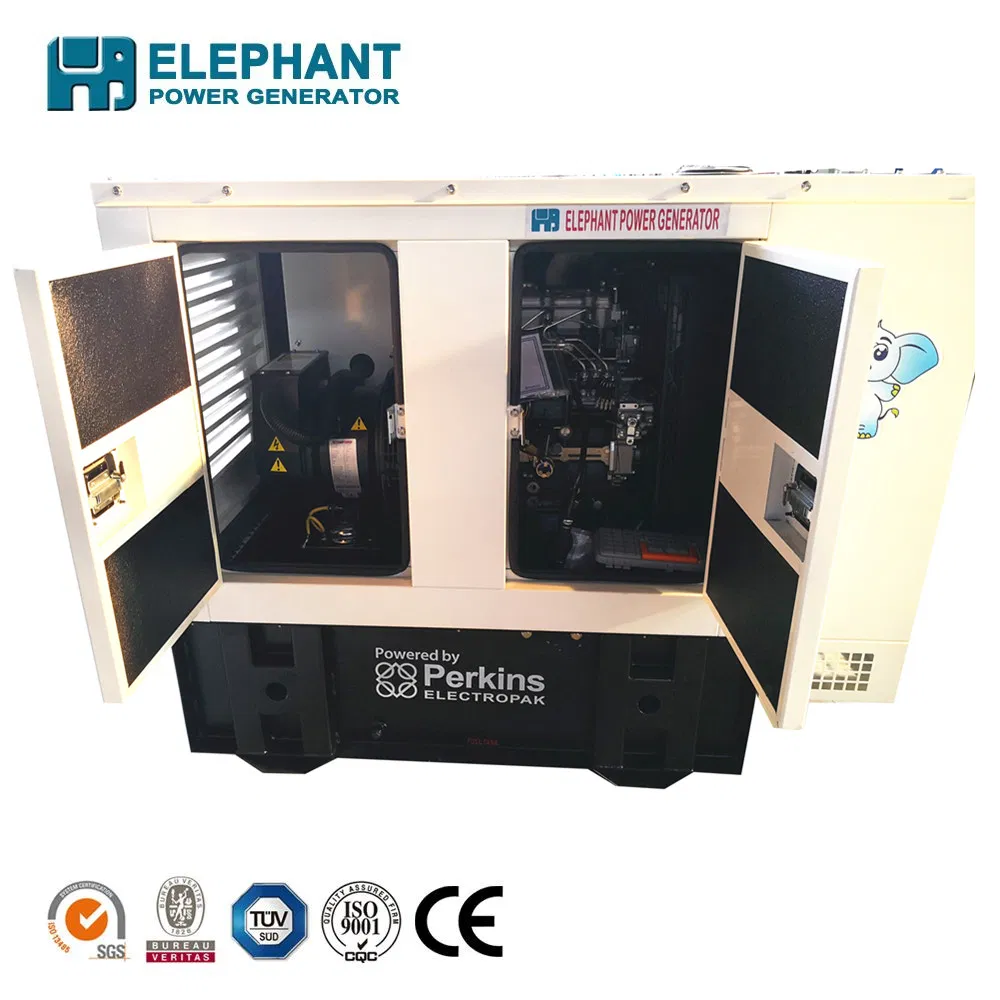

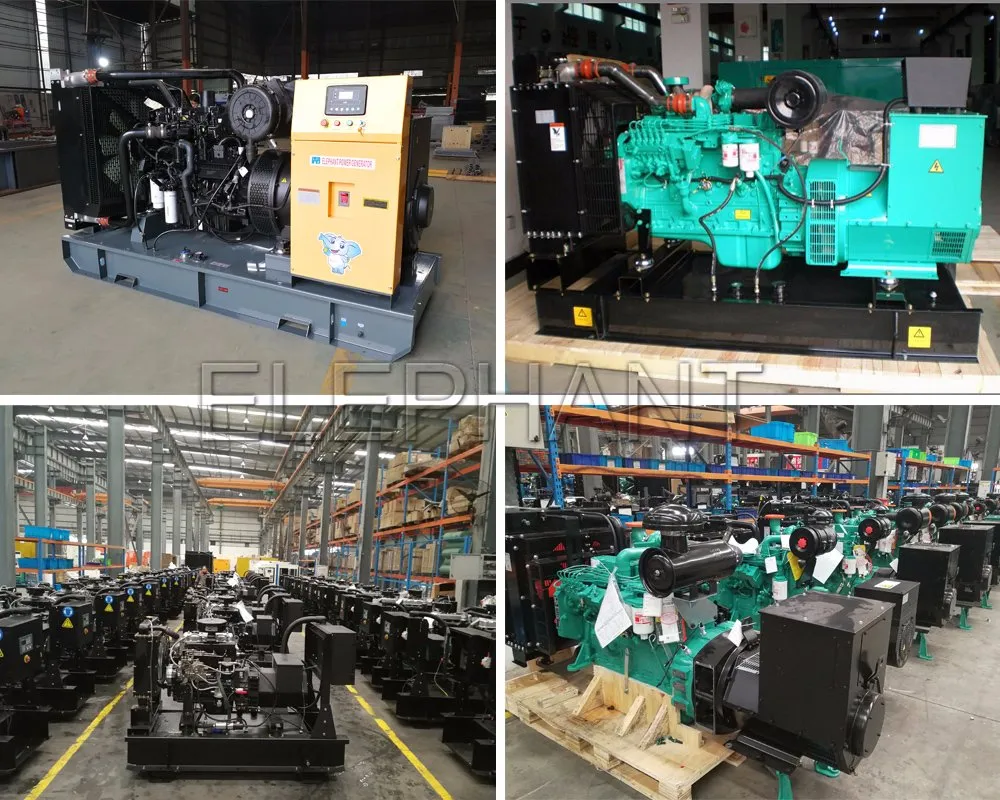

10kw Perkins FG Wilson Silent Canopy Type Diesel Generator
10kw Perkins FG Wilson Silent Canopy Type Diesel Generator
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP22,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 50ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 10.4KW/13KVA diesel generator | |
| Genset Specification | |
| Genset Model | BP14 |
| Prime Power(Kw/Kva) | 10.4KW/13KVA |
| Standby Power(kw/kva) | 11.2KW/14KVA |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Engine Model | 403A-15G1 |
| Alternator Model | STG164C |
| Open type DimensionL*W*H(mm) | 1439*500*1148 |
| Weight(Kg) | 384 |
| Silent type DimensionL*W*H(mm) | 1950*768*1150 |
| Weight(Kg) | 684 |

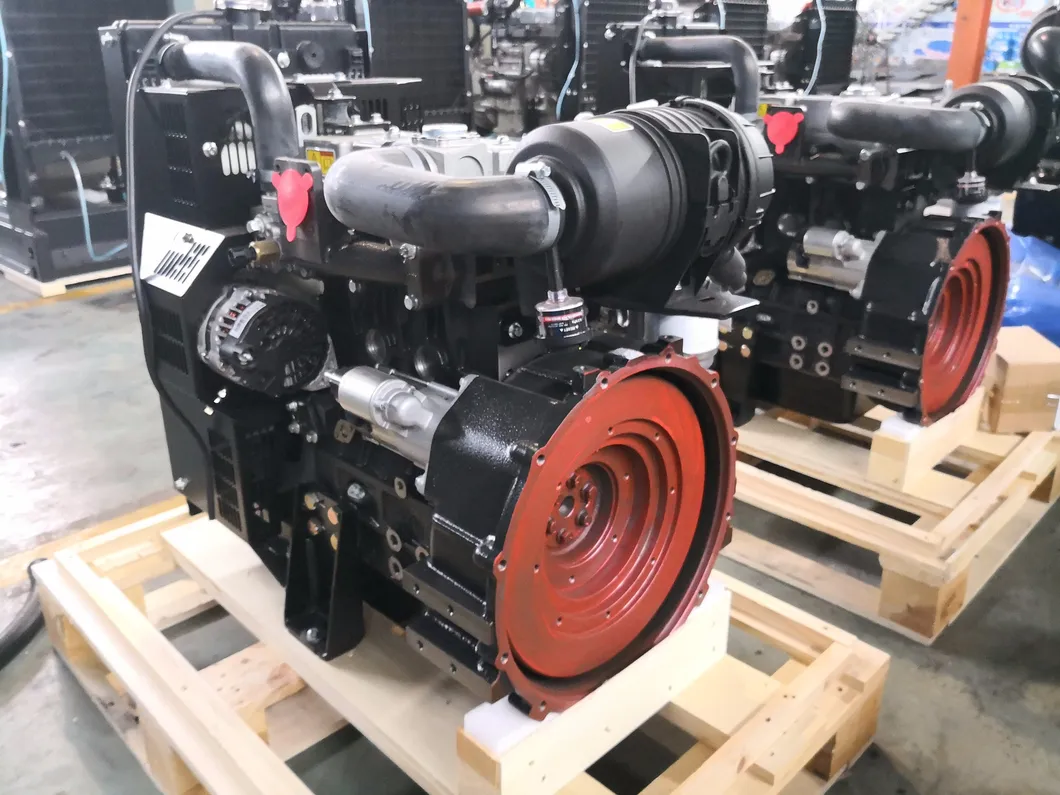

| Engine Detail | |
| Manufacturer | Perkins engine Co.,Ltd |
| Model | 403A-15G1 |
| Type | vertical,3 cylinder,in-line,water-cooled,four-stroke |
| Governor | electrical |
| Bore*Stroke | 84*90mm |
| Displacement | 1.5L |
| Compression ratio | 22.5:01 |
| Alternator Detail | |
| Model | STG164C |
| Output power(Kw/Kva) | 10.8kw/13.5kva |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ≤1% |
| Total haarmonics (TGH/THC) | ≤3% |
| Wave form:Nema=TIF | ≤50 |
| Wave form:I.E.C=THF | ≤2% |
| Bearing | single |
| Coupling | Direct |
