Product Description

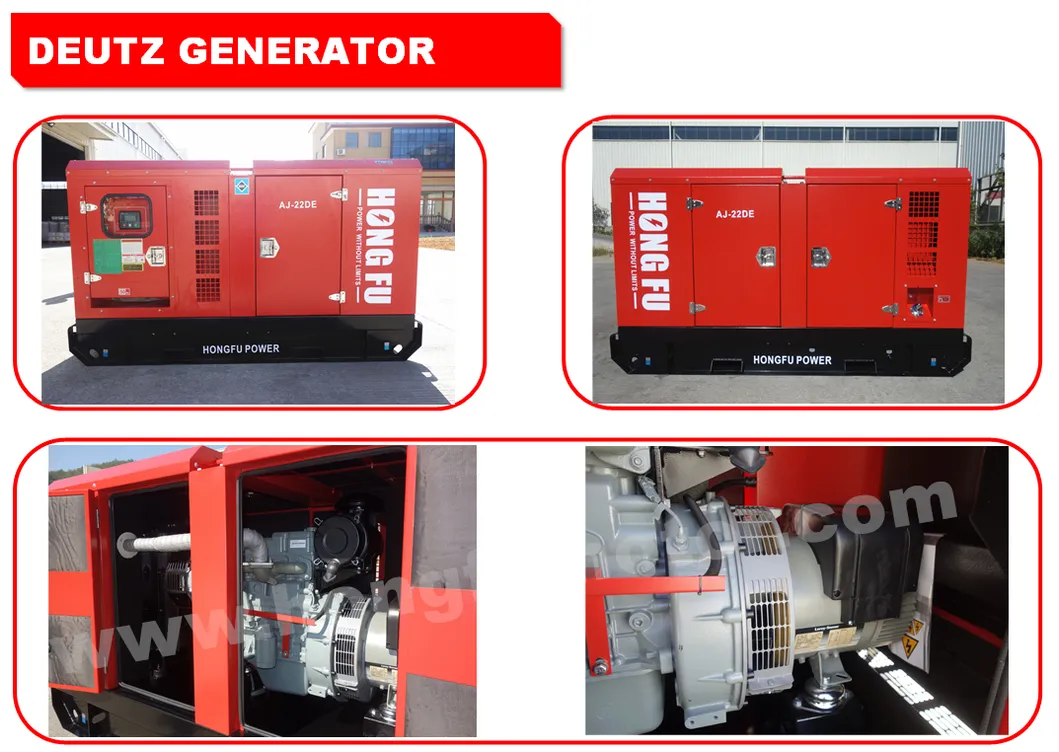

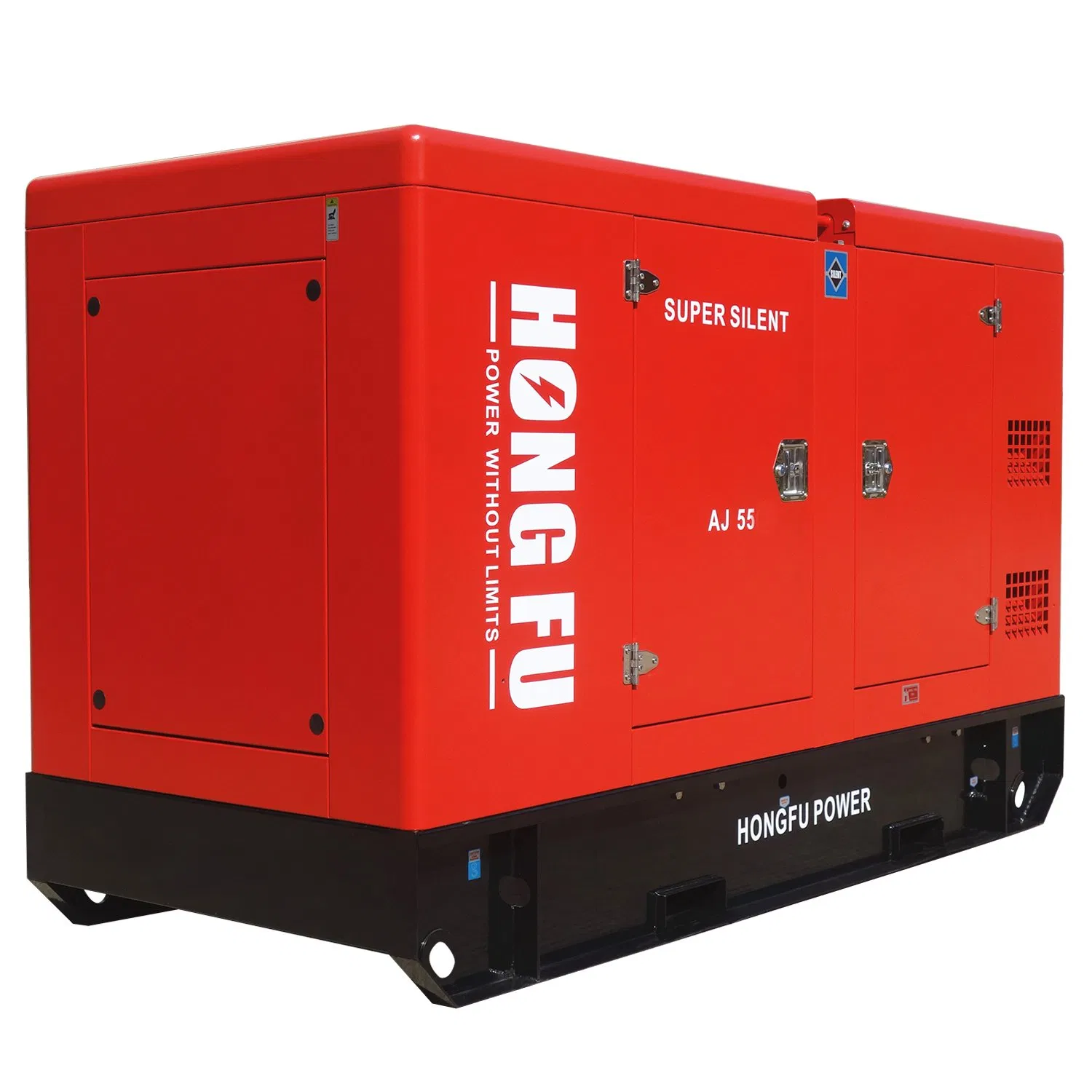

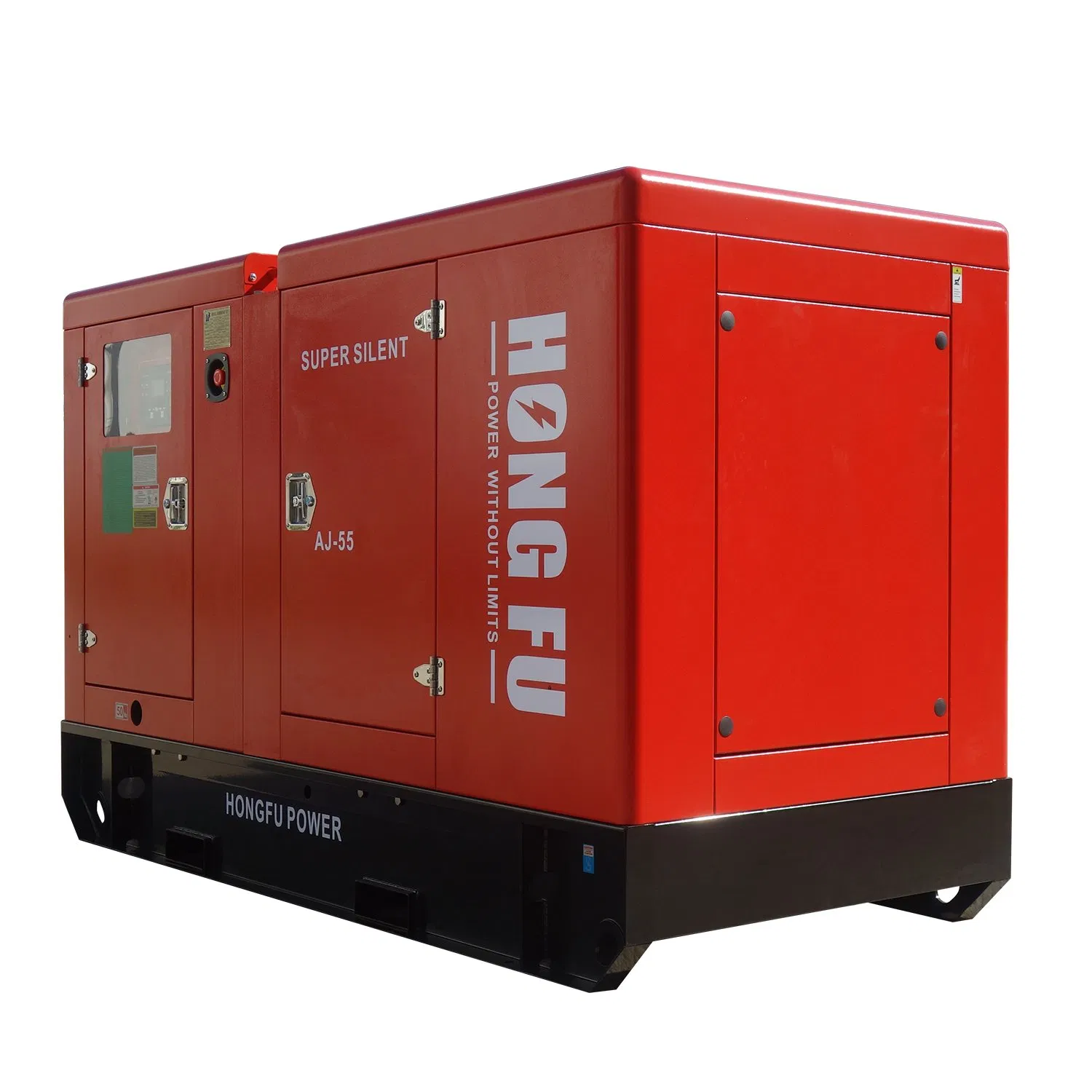

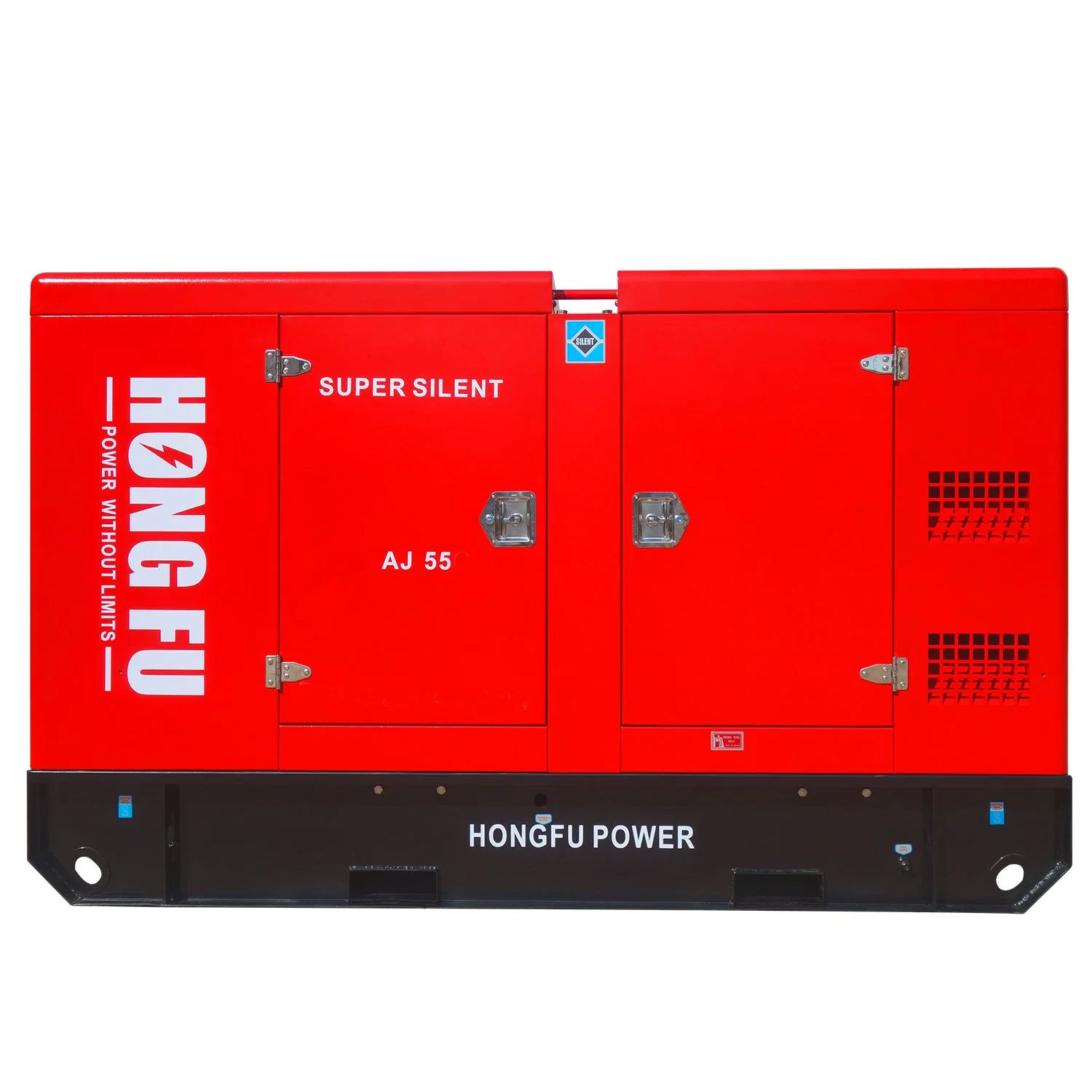

33kVA Silent Dailian Deutz Power Diesel Generator Set

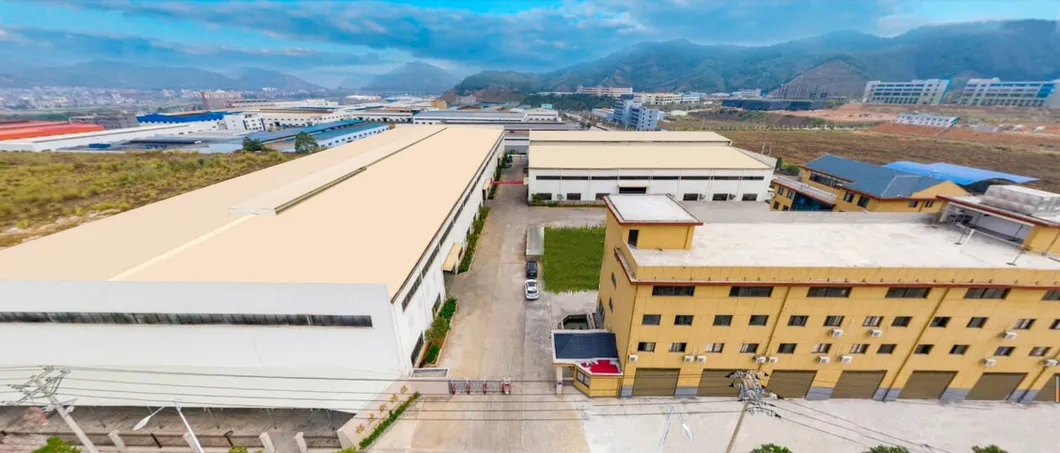

Hongfu Factory 2 workshops covered 20000 square meters:

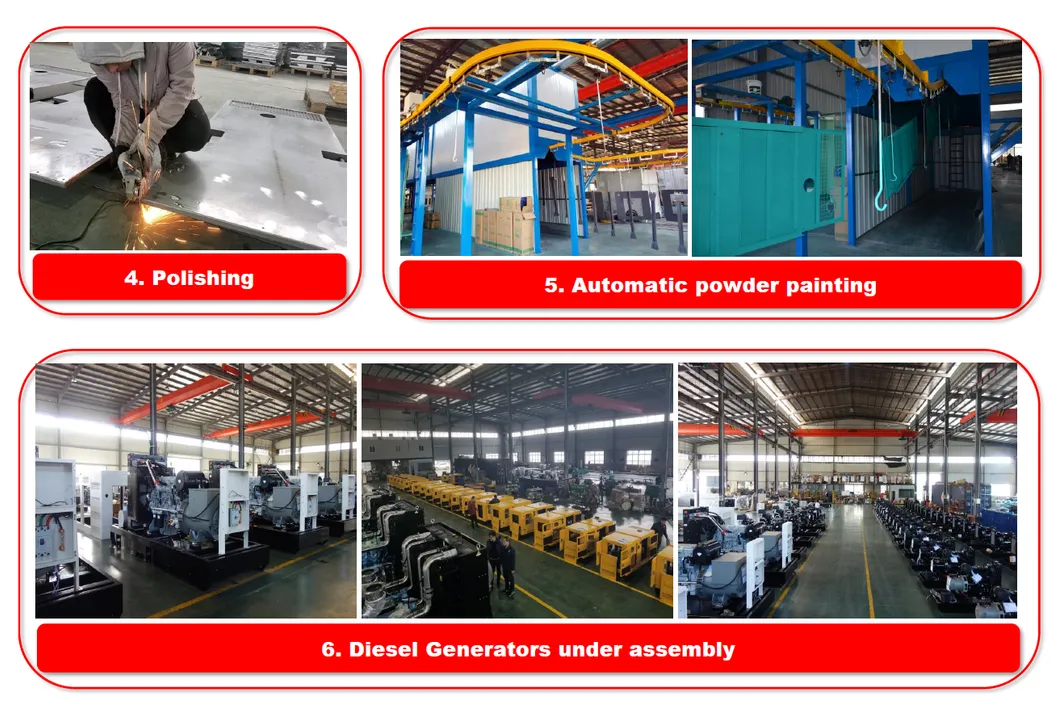

1) 9000 square meters for canopy cutting, wrenching, welding, polishing, Automatic powder coating.
2) 3000 square meters for brushless alternator production.
3) 6000 square meters for diesel generator assembly.
4) 2000 square meters for diesel generator testing.

33kVA Silent Dailian Deutz Power Diesel Generator Set

HONGFU DALIAN DEUTZ DIESEL GENERATOR PERFORMANCE DATA
Specifications 50Hz 400-230V					General Specifications
GENSETS	Prime Power		Standby Power		Engine Type	Engine Power	CyL	Bore	Stroke	DSPL	Fuel Cons.	Gov	Silent Type Compact Version
	Prime Power		Standby Power			Engine Power		Bore	Stroke	DSPL	Fuel Cons.		Dimension L x W x H	Weight
	kW	kVA	kW	kVA		kW		mm		L	L/h		mm	kg
AJ22DE	16	20	18	22	BFM3 G1	20	4L	98	105	3.16	228	Mechanical	2100x900x1280	950
AJ35DE	24	30	26	33	BFM3 G2	29	4L	98	105	3.16	226	Mechanical	2100x900x1280	1000
AJ50DE	34	43	37	47	BFM3T	40	4L	98	105	3.16	218	Mechanical	2220x950x1280	1120
AJ55DE	40	50	44	55	BFM3C	45	4L	108	130	4.76	212	Mechanical	2220x950x1280	1150
AJ70DE	50	63	55	69	BF4M2012	54	4L	101	126	4.04	216	Mechanical	2400x1000x1400	1250
AJ85DE	60	75	66	83	BF4M2012C G1	71	4L	101	126	4.04	216	Electrical	2600x1080x1450	1400
AJ85DE	60	75	66	83	BF4M2012C G2	85	4L	101	126	4.04	217	Electrical	2600x1080x1450	1400
AJ110DE	80	100	88	110	BF4M1013EC G1	97	4L	108	130	7.15	208	Electrical	2850x1080x1650	1400
AJ110DE	80	100	88	110	BF4M1013EC G2	105	4L	108	130	7.15	208	Electrical	2850x1080x1650	1680
AJ135DE	100	125	110	138	BF4M1013FC	117	4L	108	130	7.15	212	Electrical	2850x1080x1650	1750
AJ165DE	120	150	132	165	BF6M1013EC G1	146	6L	108	130	7.15	209	Electrical	3200x1130x1750	2100
AJ165DE	120	150	132	165	BF6M1013EC G2	160	6L	108	130	7.15	208	Electrical	3200x1130x1750	2150
AJ200DE	140	175	154	193	BF6M1013EC G3	166	6L	108	130	7.15	208	Electrical	3200x1130x1750	2200
AJ220DE	160	220	176	220	BF6M1013EC G4	183	6L	108	130	7.15	212	Electrical	3200x1130x1750	2200

HONGFU HUACHAI DEUTZ DIESEL GENERATOR PERFORMANCE DATA
Specifications 50Hz 400-230V					General Specifications
GENSETS	Prime Power		Standby Power		Engine Type	Engine Power	CyL	Bore	Stroke	DSPL	Fuel Cons.	Gov	Silent Type Compact Version
	Prime Power		Standby Power			Engine Power		Bore	Stroke	DSPL	Fuel Cons.		Dimension LxWxH	Weight
	kW	kVA	kW	kVA		kW		mm	mm	L	L/h		mm	kg
AJ250DE	180	225	198	248	BF6M1015-LA GA	208	6V	132	145	11.9	42.7	Electrical	3900x1400x2250	3000
AJ275DE	200	250	220	275	BF6M1015C-LA G1A	228	6V	132	145	11.9	47.4	Electrical	3900x1400x2250	3200
AJ300DE	220	275	242	303	BF6M1015C-LA G2A	256	6V	132	145	11.9	52.2	Electrical	3900x1400x2250	3290
AJ245DE	250	313	275	344	BF6M1015C-LA G3A	282	6V	132	145	11.9	59.3	Electrical	3900x1400x2250	3290
AJ385DE	280	350	308	385	BF6M1015C-LA G4	310	6V	132	145	11.9	66.4	Electrical	3900x1400x2250	3450
AJ415DE	300	375	330	413	BF6M1015CP-LA G1A	328	6V	132	145	11.9	71.1	Electrical	3900x1400x2250	3550
AJ480DE	350	438	385	481	BF8M1015CP-LA G1A	388	8V	132	145	15.9	75.9	Electrical	4800x1800x2250	4600
AJ500DE	360	450	396	495	BF8M1015C-LA G2	403	8V	132	145	15.9	85.4	Electrical	4800x1800x2250	4800
AJ525DE	380	475	418	523	BF8M1015CP-LA G1A	413	8V	132	145	15.9	90	Electrical	4800x1800x2250	4800
AJ550DE	400	500	440	550	BF8M1015CP-LA G2	448	8V	132	145	15.9	94.9	Electrical	4800x1800x2250	5000
AJ565DE	410	513	451	564	BF8M1015CP-LA G3	458	8V	132	145	15.9	96	Electrical	4800x1800x2250	5100
AJ580DE	420	525	462	578	BF8M1015CP-LA G4	480	8V	132	145	15.9	100	Electrical	4800x1800x2250	5100
AJ625DE	450	563	495	619	BF8M1015CP-LA G5	509	8V	132	145	15.9	106	Electrical	4800x1800x2250	5100
AH825DE	600	750	660	825	HC12V132ZL-LAG2	666	12V	132	145	23.8	209	Electrical	4800x1800x2250	5100

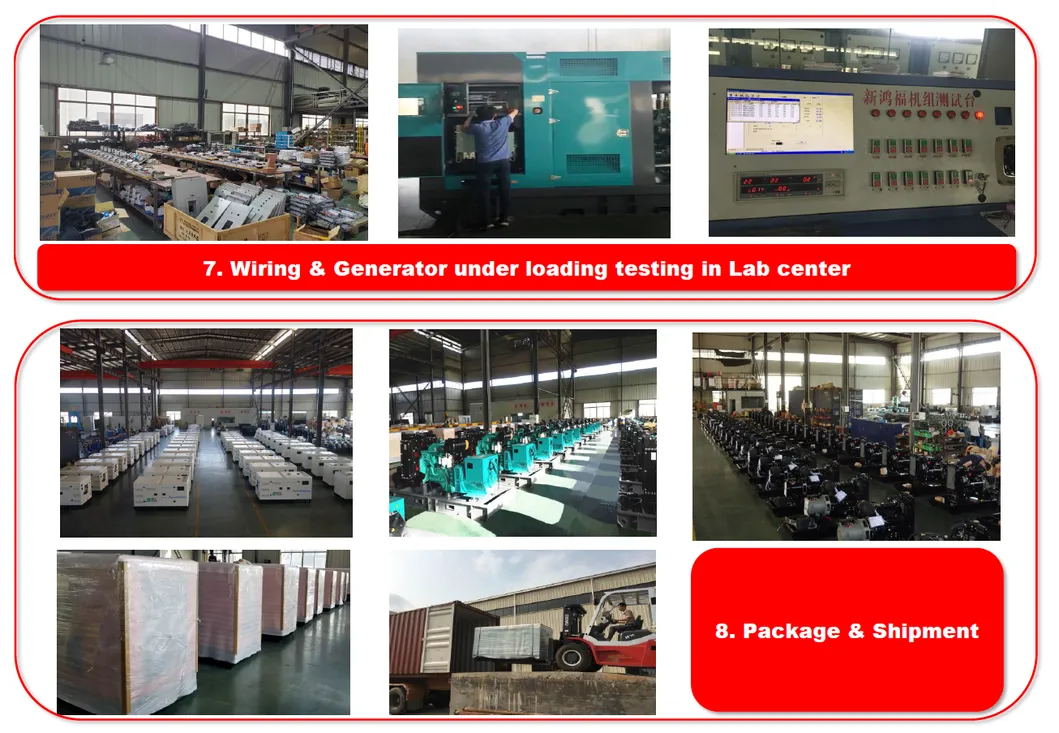

Hongfu generator factory do every production segments: from Cutting, Wrenching, Polishing, Welding, Powder coating, Fuel tank leakage testing, Assembly, Wiring, Generator loaded testing, (in order to assure the generator with high quality and stay in excllent performance, we also produce HONHFU POWER BRAND brushless Alternator <IP: 23 / H CLASS > for our generator oder use).

HONGFU GENERATOR TESTING ITEMS:

01) Parts faults testing

02) Fuel tank pressure testing

03) Bolt tightening torque testing

04) Painting thickness testing

05) Voltage bearing and insulation testing

06) Speed performance testing

07) Oil pressure testing

08) Smoke testing (up and down loading testing frequently )

09) Noise testing

10) 1 hour testing for 25%, 50%, 75%, 100%, 110% loaded power to test the fuel consumption and control systems, alarm and shut-down protection.

33kVA Silent Dailian Deutz Power Diesel Generator Set

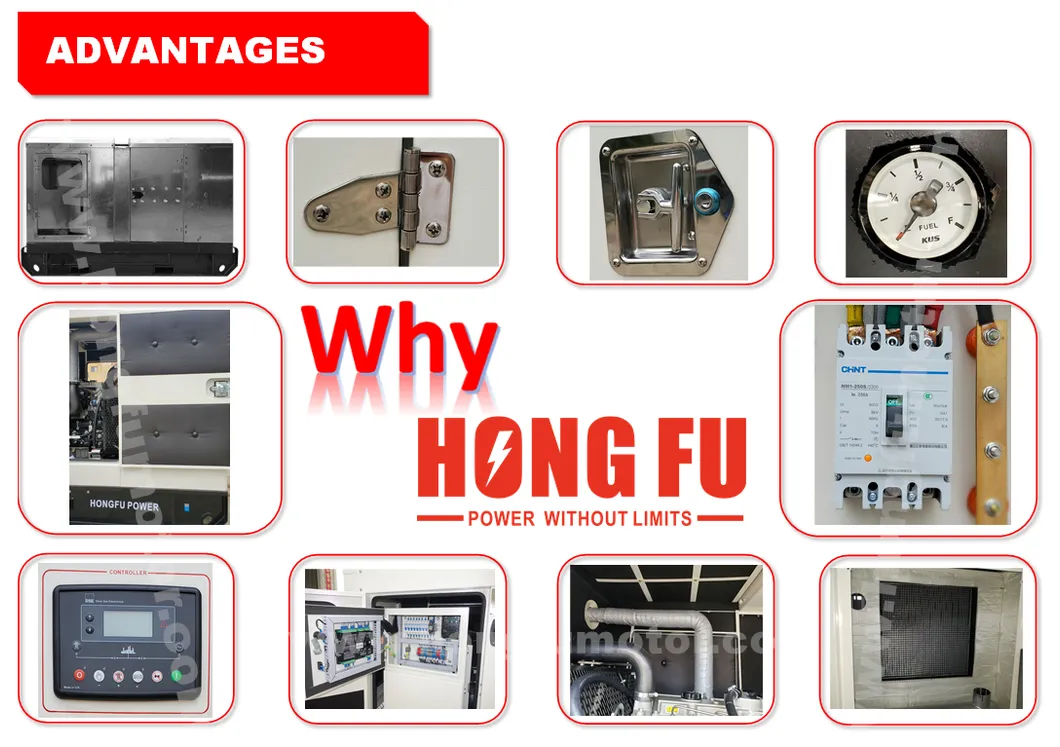

WHY CHOOSE HONGFU DIESEL GENERATORS?

01) The generator is with 8-10 hours base frame tank, the base frame with 5mm thickness steel at least.

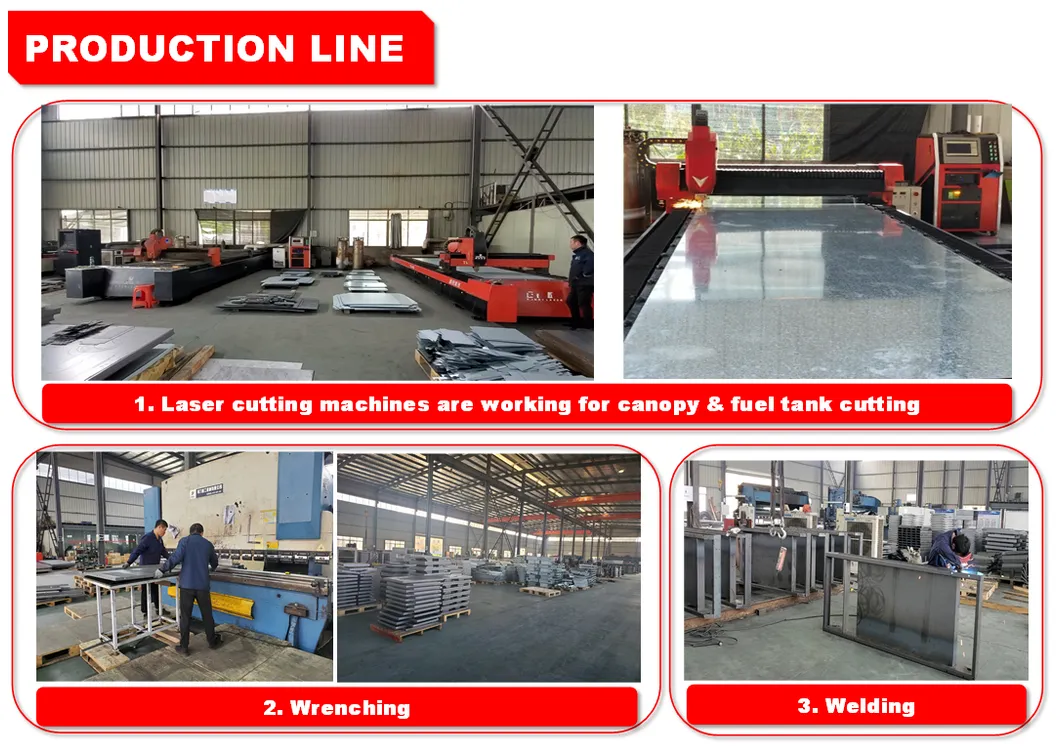

02) The canopy thickness is 2.5mm. The steel cut by Laser cutting machines and bended by automatic wrench machines. after that, they are welded and polished.

03) Our coating powder is import from Taiwan or Japan, and it coated by automatic powder painting machine, it can assure there is no any color lose in 3 years.

04) Generator current under 1000A, the Circuit Breaker will be CHNT MCCB (ABB or Schneider MCCB for options).

05) Generator current exceed 1000A, the Circiut Breaker will be with AISIKAI ACB ( ABB or Schneider ACB for options).

06) We use high density insulation foam to down the noise (4cm thickness for silent foam).

07) All generators with 2 silencers, and there is rockwool inside of silencer to reduce the noise.

08) All generator with big block behind of the canopy air intake to prevent noise.

09) There are standard 2 LED lights in each of our generator to provide light for checking and maintenance generator.

10) All our generators with metal cover on the Turbo and intake manifold.

11) All our generators with 304# stainless steel screw, hinge and locker to prevent any rust during working.
