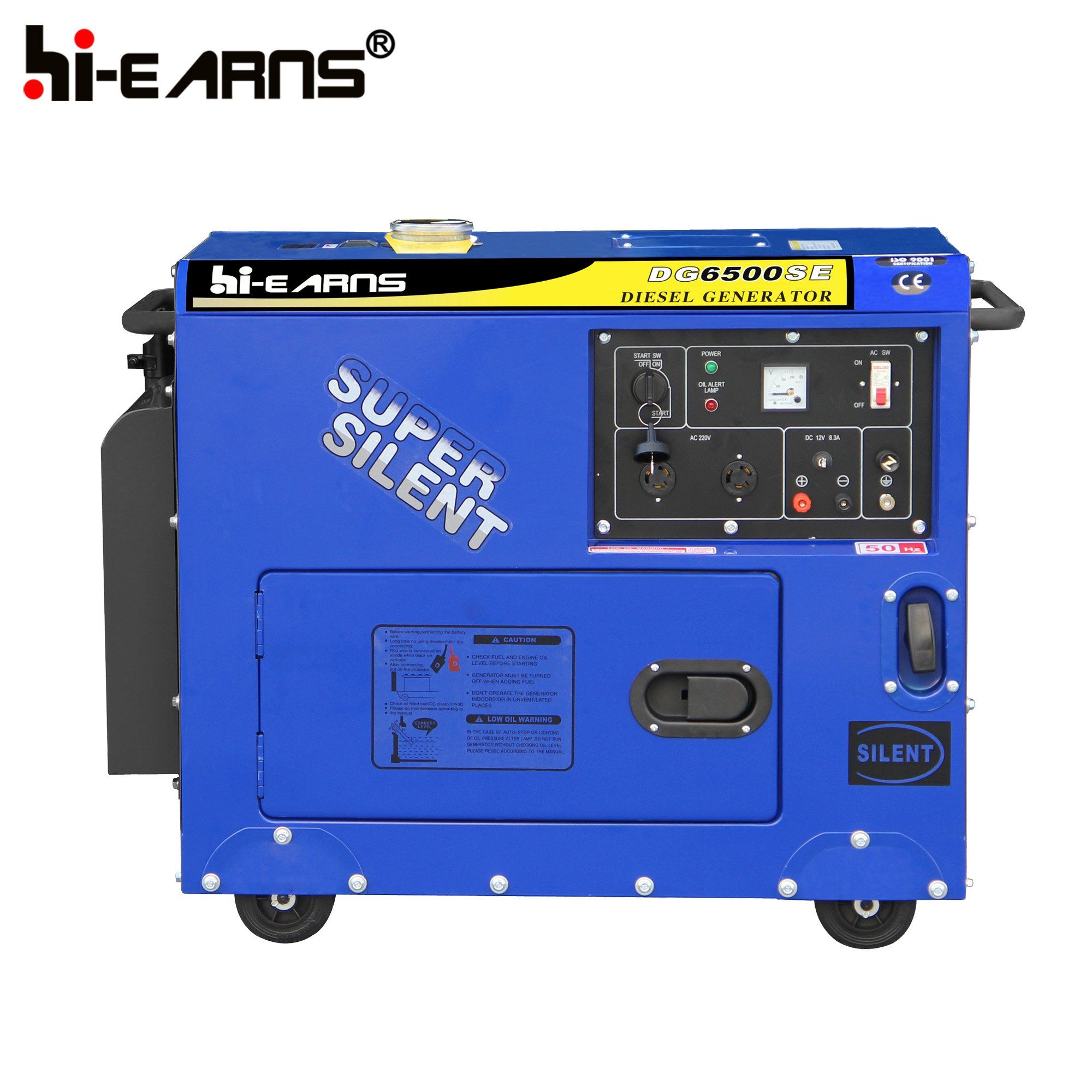

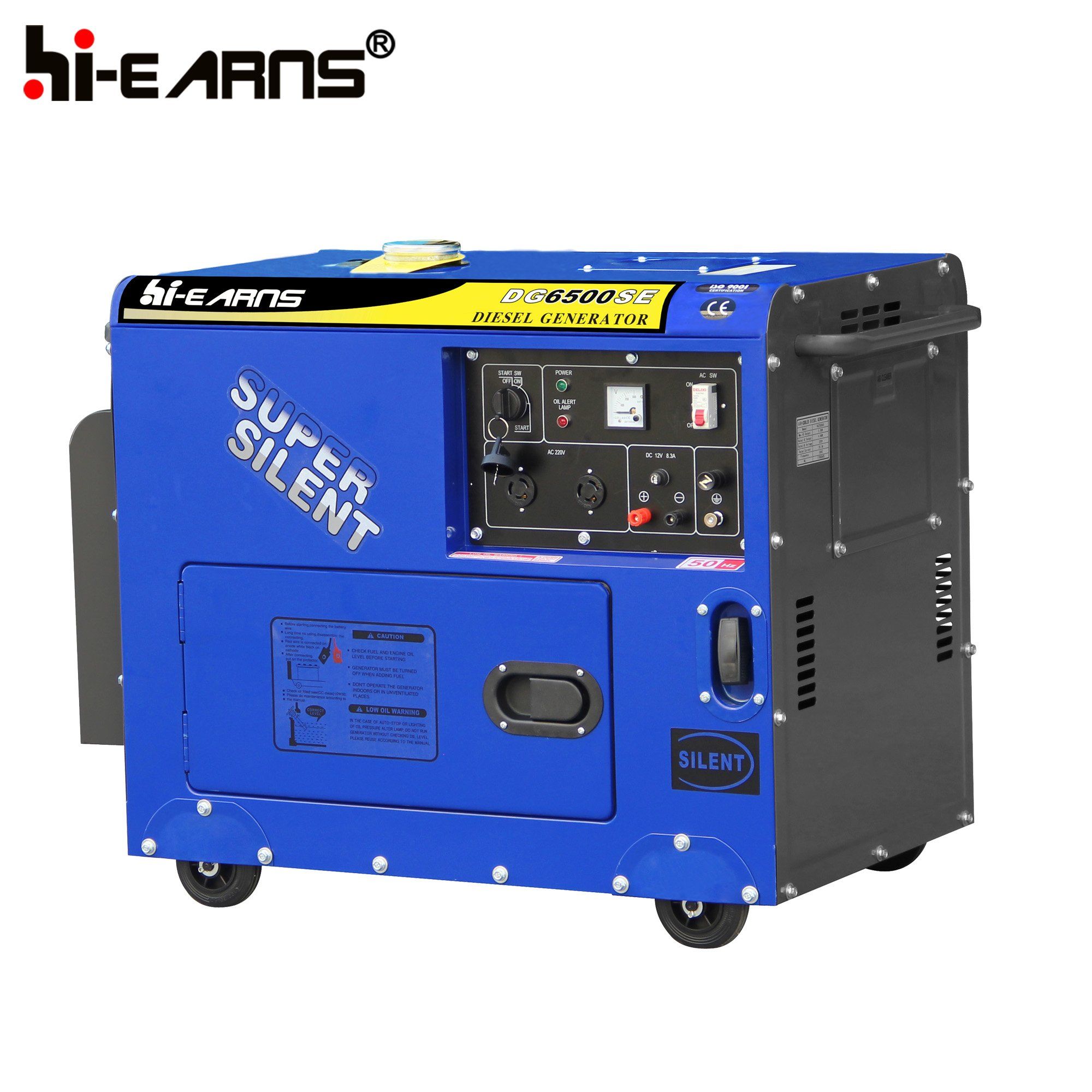

Air-Cooled 2- 5kw Protable Diesel Genset (DG6500SE)
* Generator model: Blue Color 5kw Diesel Genset (DG6500SE)* With 10HP HR186FA diesel engine, ensure a rated output 4.6KW and max. Output is 5KW; Canopy model control the noise under 72 DB; Adopted by many familiy.* All spare parts pass Strict and Accurate raw material detection(IQC); All finished pr......
Send Inquiry
Product Description
* Generator model: Blue Color 5kw Diesel Genset (DG6500SE)* With 10HP HR186FA diesel engine, ensure a rated output 4.6KW and max. Output is 5KW; Canopy model control the noise under 72 DB; Adopted by many familiy.
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!
* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.
As a professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max.output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.5 | 5 | |
| Rated.AC voltage(V) | 120,220,230,120/240 | ||
| Power factor(cosΦ) | COSΦ=1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited,2-pole,single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 7.3 | 7 | |
| ENGINE | Model | HR186F | |
| Engine type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Bore*stroke(mm) | 86*72 | ||
| Fuel | 0# or -10#light diesel oil | ||
| Lubrication oil volume(l) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L×W×H)(mm) | 960×555×780 | |
| Net weight(kgs) | 175 | 176 | |
| 20FT | 72 | ||
