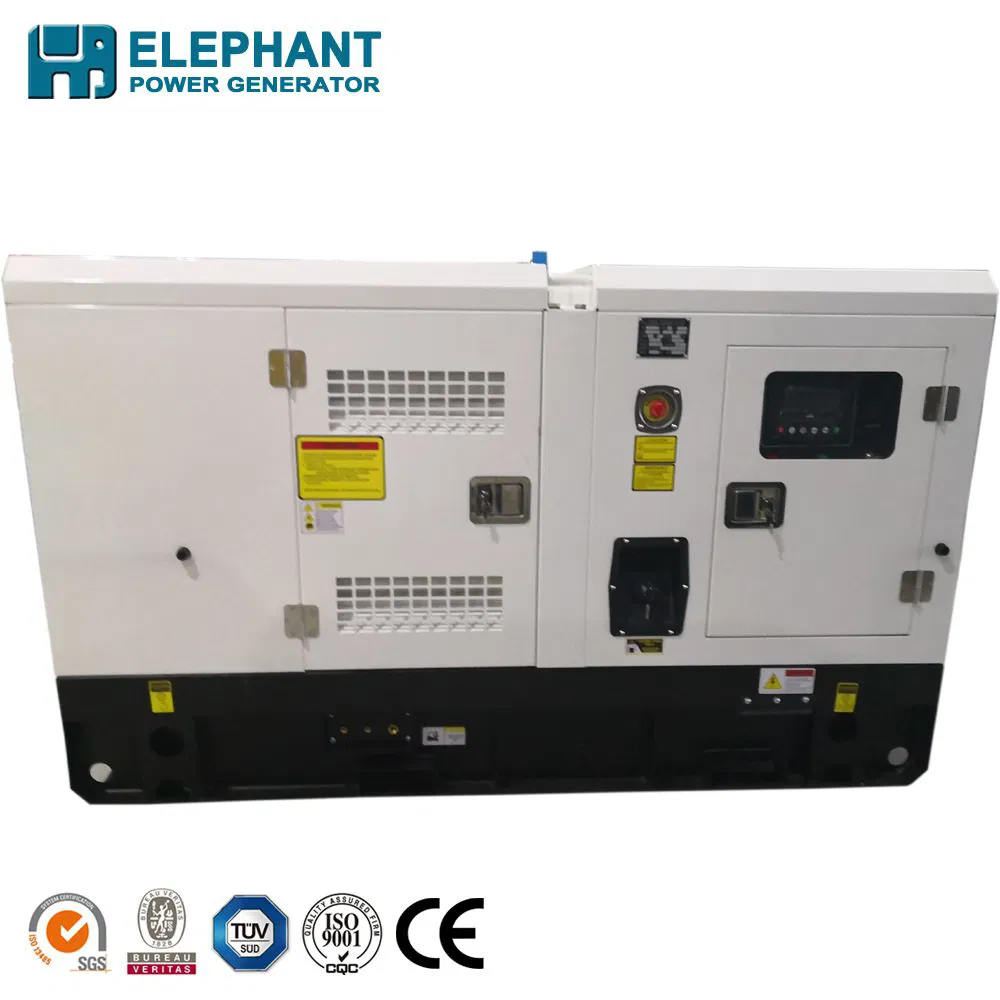

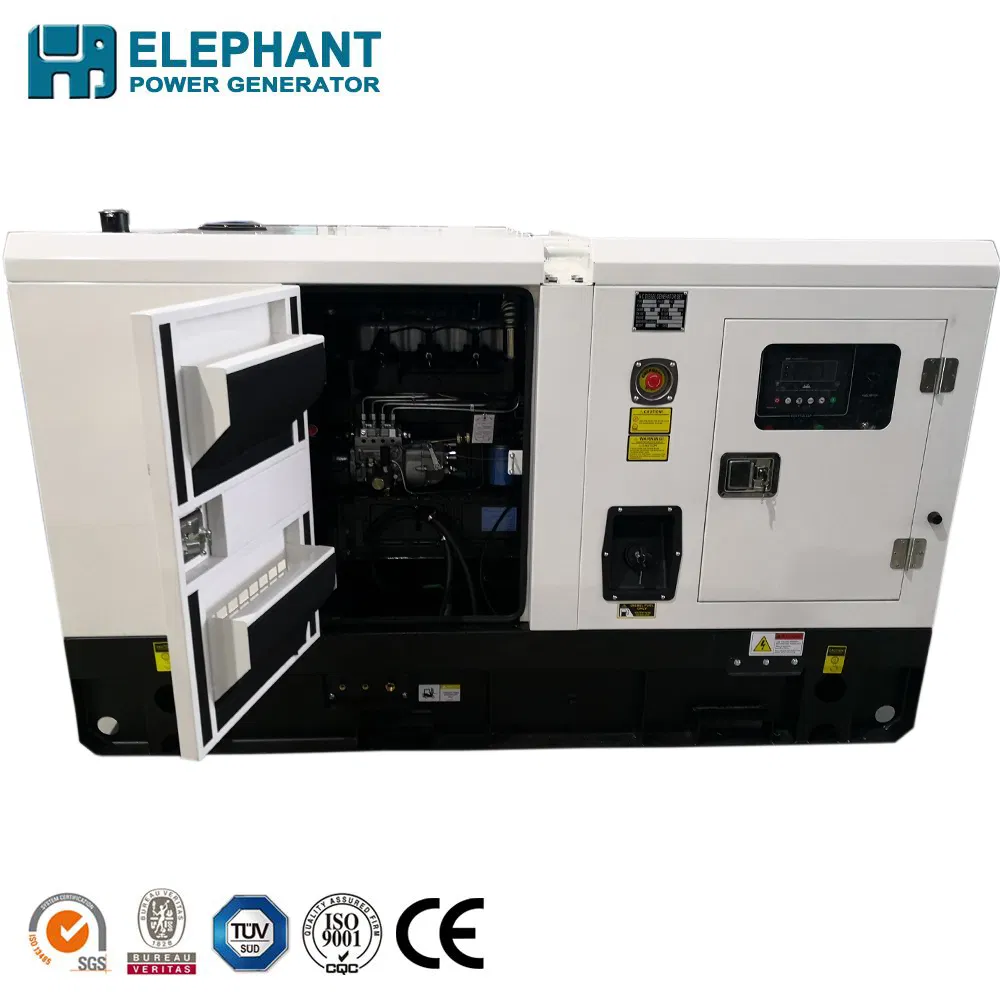

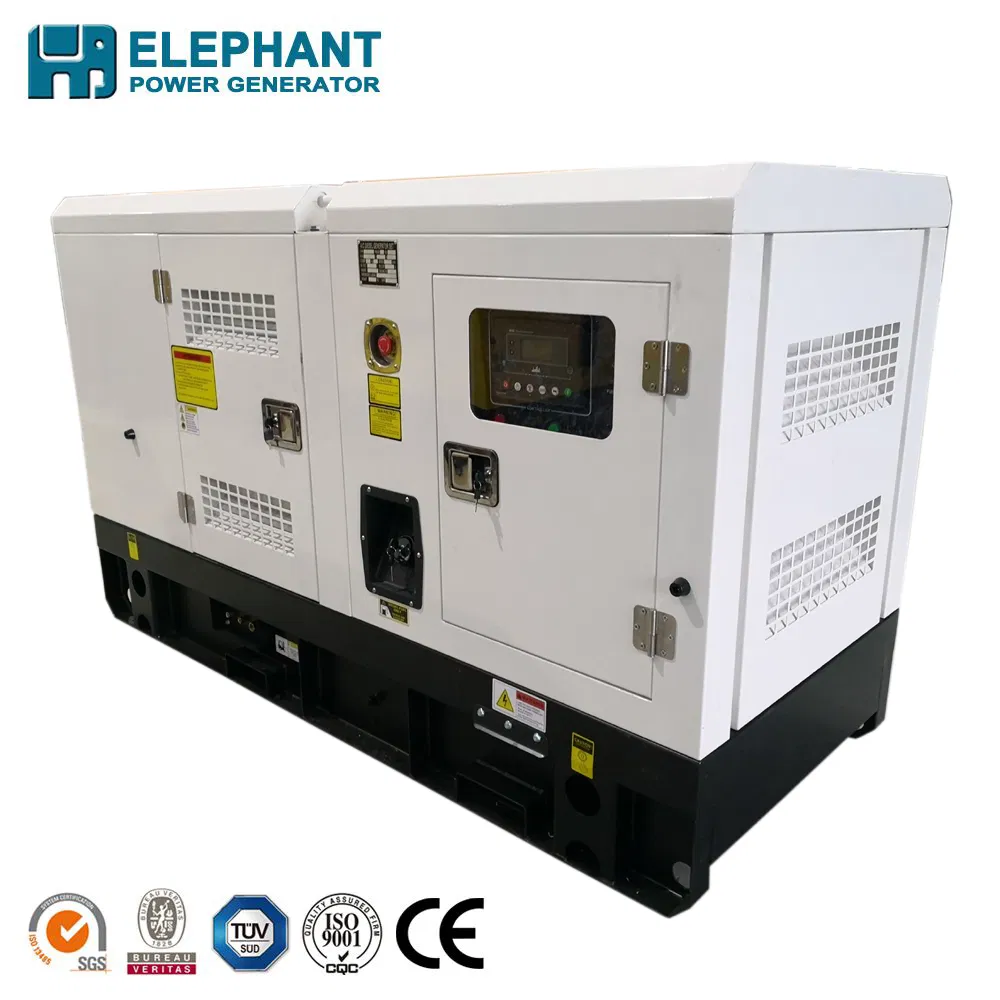

Industry Soundproof 40kVA Water-Cooled Silent Power Generator
Industry Soundproof 40KVA Water-cooled Silent Power GeneratorProduct DescriptionProduct ParametersProduct Overview 1) Brand-new engine,w/start motor. 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.3) Auto control panel with LCD display. 4) Engine mounted ba......
Send Inquiry
Product Description
Industry Soundproof 40KVA Water-cooled Silent Power Generator
Product Description
Product Parameters
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BL-40 |
| Prime Power(Kva/Kw) | 40/32 |
| Structure type | Soudproof |
| Dba"@7m | ≤70dBA |
| Engine Model | 1003TG |
| Alternator Model | STG184J |
| DimensionL*W*H(mm) | 2300*1060*1400 |
| Weight(Kg) | 830 |
| Engine Detail | |
| Manufacturer | Tianjin Lovol Engines Co., Ltd. |
| Model | 1003TG |
| Engine speed/frequency | 1500rpm/50HZ |
| Engine power | 40kw/50kva |
| ......Standby power | 32kw/40kva |
| ......Prime power | 35kw/44kva |
| Type | 4cycle,in-line,6-cylinder |
| Aspiration | Water-cooled |
| Governor | Electric Start |
| Bore*Stroke | 100*127(mm) |
| Displacement | 3.99L |
| Compression ratio | 17.5:1 |
| Idle speed | 700±30 r/min |
| Brake mean effective pressure(standby power) | 6kPa |
| Piston speed | 6.35m/s |
| Friction horsepower | 32kw |
| Alternator Detail | |
| Manufacturer | ELEPHANT TECH CO.,LTD |
| Model | STG184J |
| Output power | 32KW |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | Single |
| Coupling | Direct |

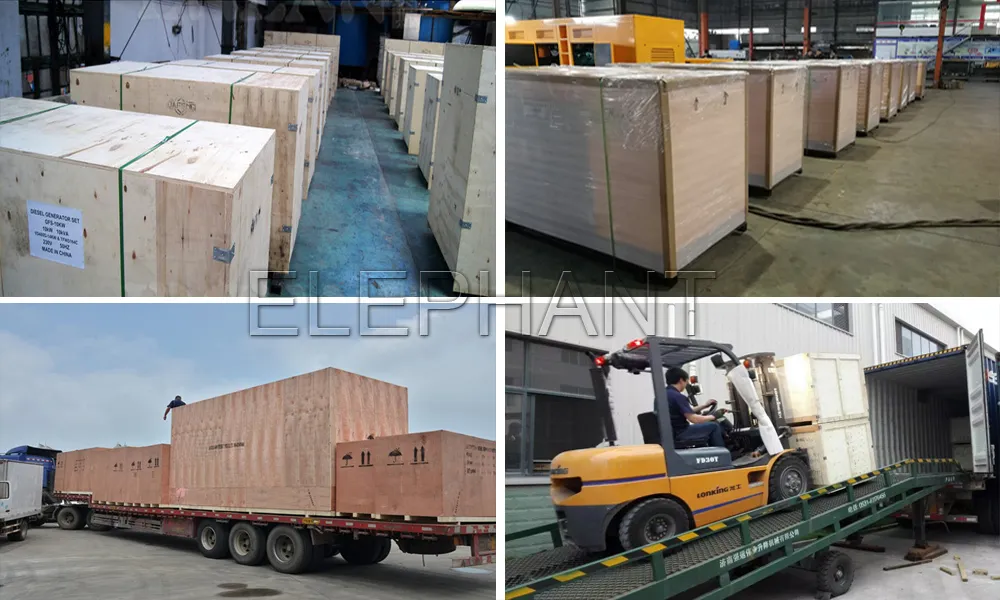

Packing & Shipping
