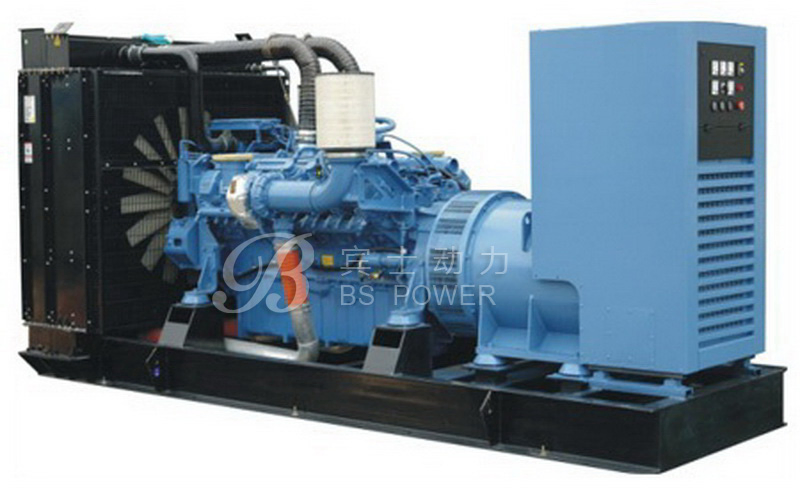

Mtu Diesel Generator Set (BMX520)

MTU Diesel Generator Set
Genset Model: BMX520

1. MTU Generator Set
Continuous Output: 480KW /600kVA
Standby Output: 520KW /650kVA
Rated Power Factor COSΦ =0.8(lagged)
Rated Output Voltage 400V/230V(400-10000V can be reached)
Rated Current(Continuous/Standby) 1039A/1136.5A
Rated Speed 1500rpm
Rated Frequency 50Hz
Starting Control Method Auto Start/Handle Start
Dimension(mm) 3930*1580*1910
Genset Weight(KG) 4985kg
Fuel Consumption(100% Load)(g/kwh) 196g/kwh
Noise(LP7m) 90dB(A)

2. Engine Specification
Brand MTU
Model No. 12V2000G63
No. Of Cylinder 12
Bore*Stroke 130*150 mm
Starting Method 24V DC Voltage Bearing Starting Motor
Cooling Method Close Circuit Water Cooling
Oil-supply Method Electrical Injection
Speed-adjustment Method Electronic Governing
Aspiration Turbocharged Inter-cooled
Speed 1500rpm

3. Alternator
Brand Faraday
Model No. FD5LP-4
Rated Power/Capacity 630KW / 787.5kVA
Rated Voltage 400V/230V
Output Factor COSΦ =0.8(lagged)
Insulation Class H Class
Protection Class IP23
Wiring Methods 3 Phases and 4 Wires
Voltage Adjustment Methods DVR
Output Frequency 50Hz

4.Features for Deep Sea control panel

• Control with AMF module
•  Fuel usage monitor and low-level alarms
•  Emergency stop push button
•  Fully PC or front panel configurable
•  Custom graphical icon interface display
•  Manual/automatic load transfer
•  Automatic shutdown on fault condition
•  Remote communications (RS232 & RS485)
•  Provides engine alarms and status information and alarm indication by 1 LED & LCD;
•  Can be used with ATS or may allow up 1 to 32 generators to load share.
•  Provides access to historical alarms and operational status

5.Standard configuration for the generator set

• Diesel generator
• Synchronization brushless alternator
• Deepsea controller
• Drive fan for engine and 40ºC heat radiating water tank.
• Moulded case circuit breaker
• Battery and battery cable
• Floating charger
• Base frame with shock absorber
• Daily fuel tank
• Exhaust elbow, exhaust bellows, exhaust muffler
• Fuel filter, oil filter, air filter
• Tool kits
• Plastic membrane packing

6.Optional accessories

• Jacket pre-heater
• Oil-water separator
• Oil pre-heater
• Spit-type daily fuel tank
• Weather and Sound-proof container
• Trailer

7.Warranty:
Guarantee for one year or 1000 hours (according to whichever reach first)
From ex-factory date. During the guarantee period, we will provide the free
easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for gen-set.

8.Our Service:
1). Pre-sales promise

-Professional engineers will give reasonable suggestions about selection , room design to all the technical solutions

- Provide newest products, supply and marketing information

2). Selling promise

- Provide the technical support for the onsite installation gudiance and test before shipping

- Genset installation, room noise reduction and dust pollution ect.

3). After-sales promise
-Training of operation and maintenance personnel
-Onsite repaire
-Spare parts supply

9.Company profile:
Our company is a professional manufacture of gas generator set, all our products are of good quality. Binshi power can produce various gas generator sets, such as natural gas gensets, biogas gensets, coal-gas gensets and LPG gensets. It blongs to new green environmental protection power to substitute those gensets powered by gasoline or diesel in the near future. Natural gas or other flammable gas can be esed well as fuel, which may be turned waste to treasure. Due to the advantage of convenient and safe operation, cost-effectiveness, low-emission pollution, and suitable for CHP, It will have a great prospect and application.

Welcome clients from all the world come to visit and give us guidance in our factory

Factory view


Package type

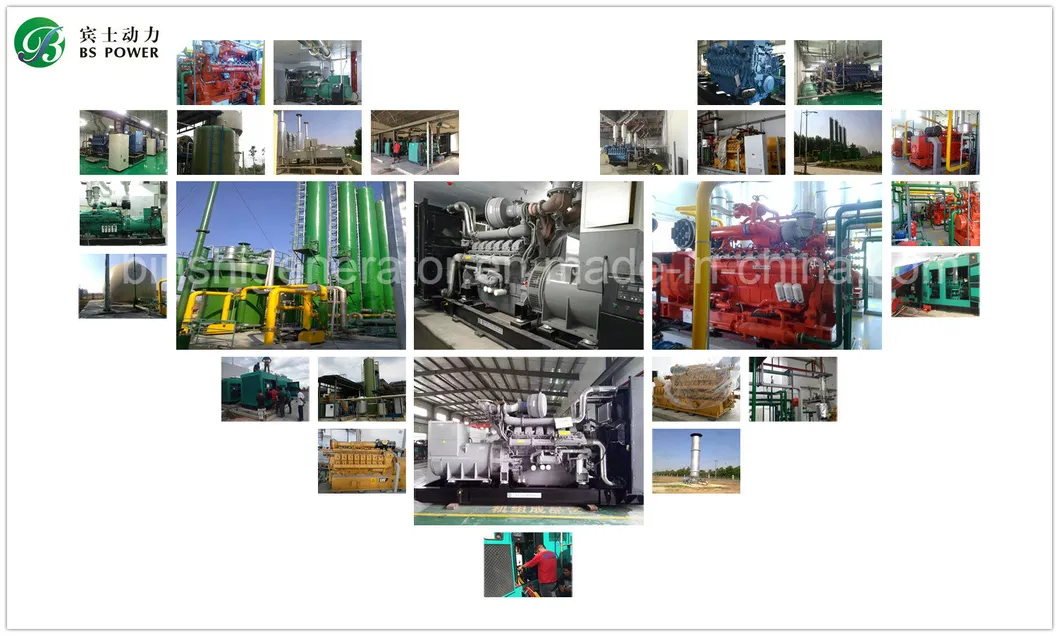

Classic project:
