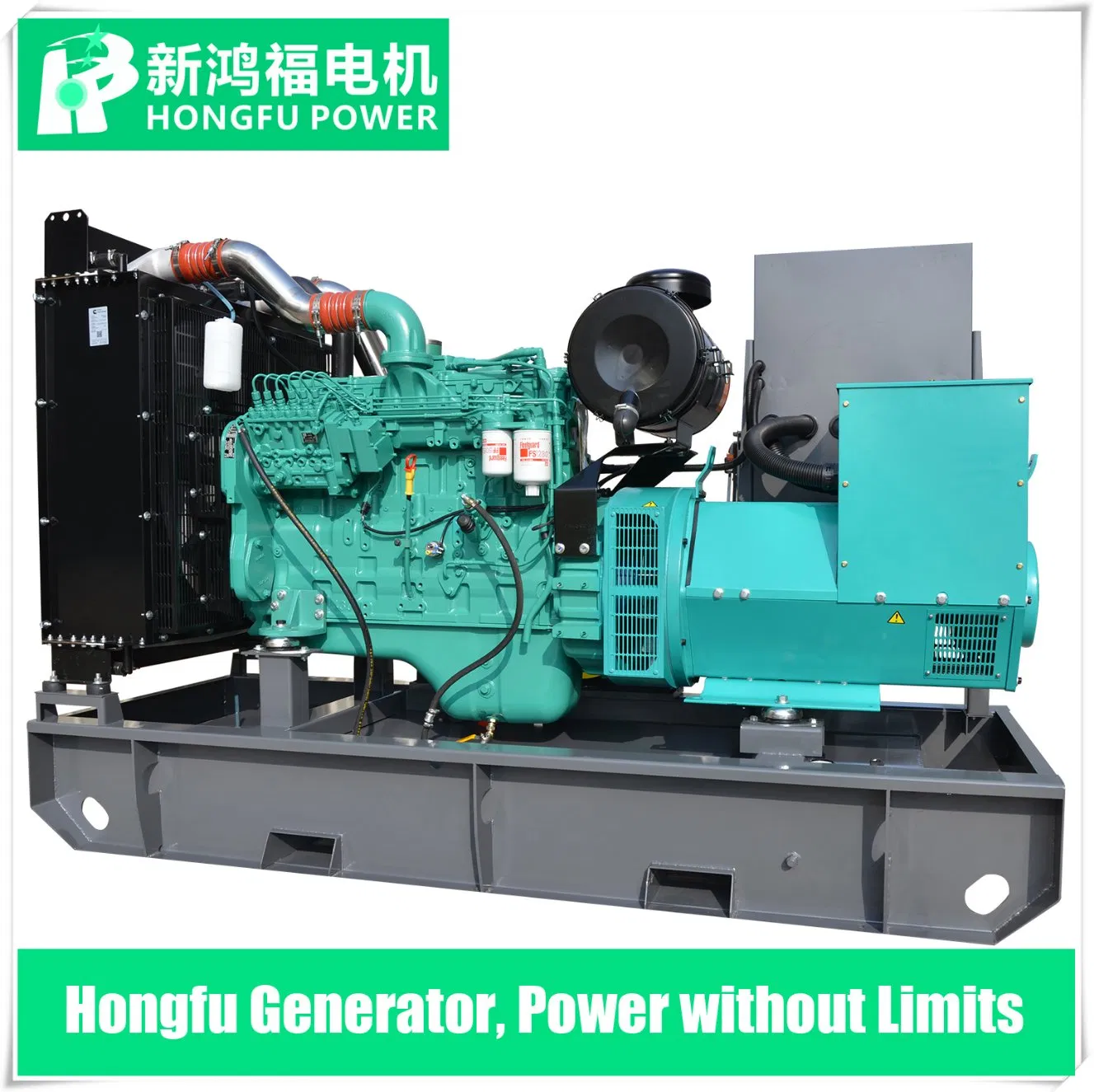

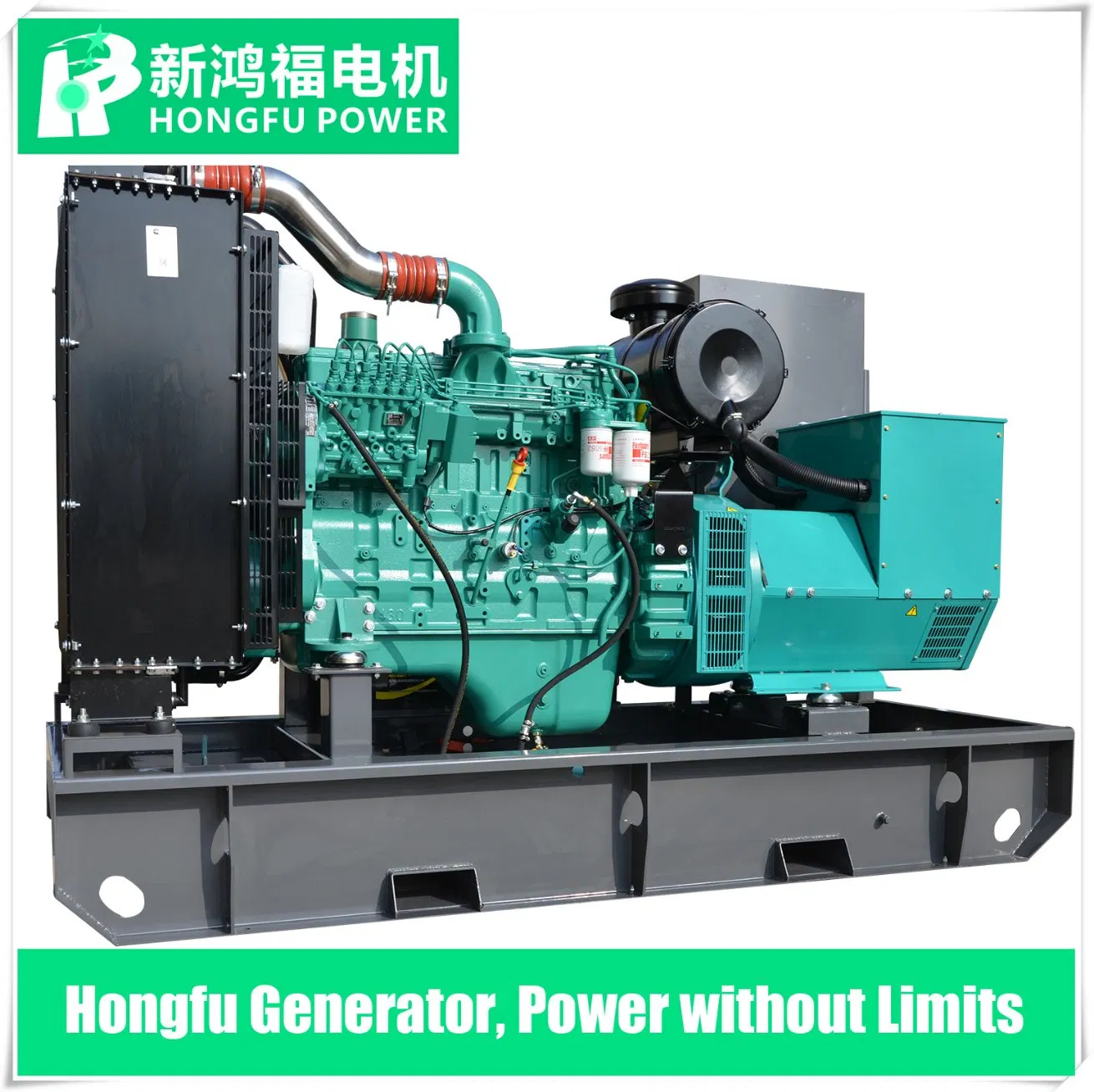

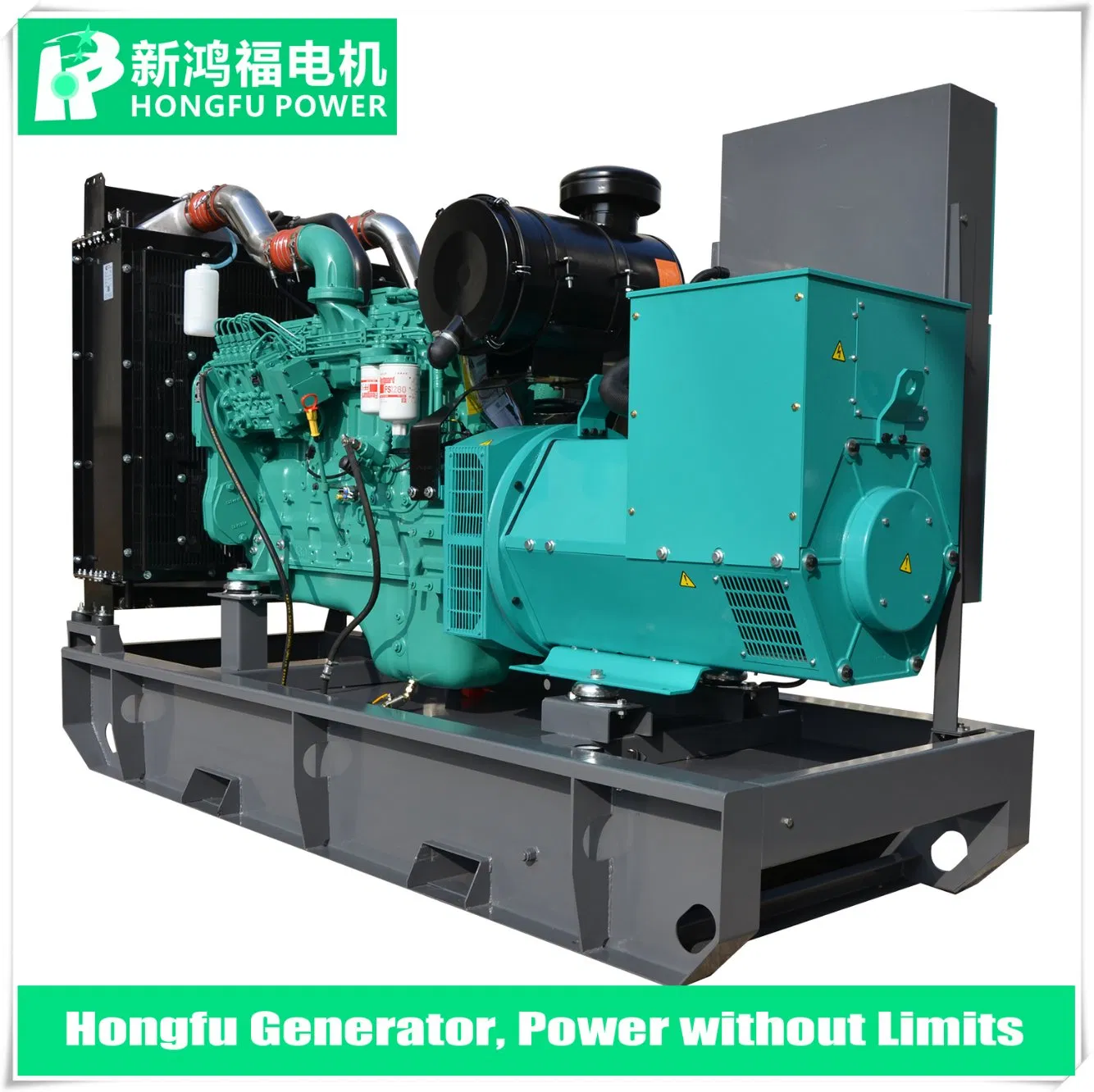

Open Type Prime 1000kVA Cummims Diesel Generator
Diesel generator Factory Competitive price Good quality Exquisite workmanship Customized design Own exporting licenseStandard configuration1,CanopyCanopy raw material is galvanized and cold rolled steel also available, thickness reach to 2.5mm, surface are smooth & unsmooth for options, any type......
Send Inquiry
Product Description
★Diesel generator ★Factory ★Competitive price ★Good quality ★Exquisite workmanship ★Customized design ★Own exporting license
Standard configuration

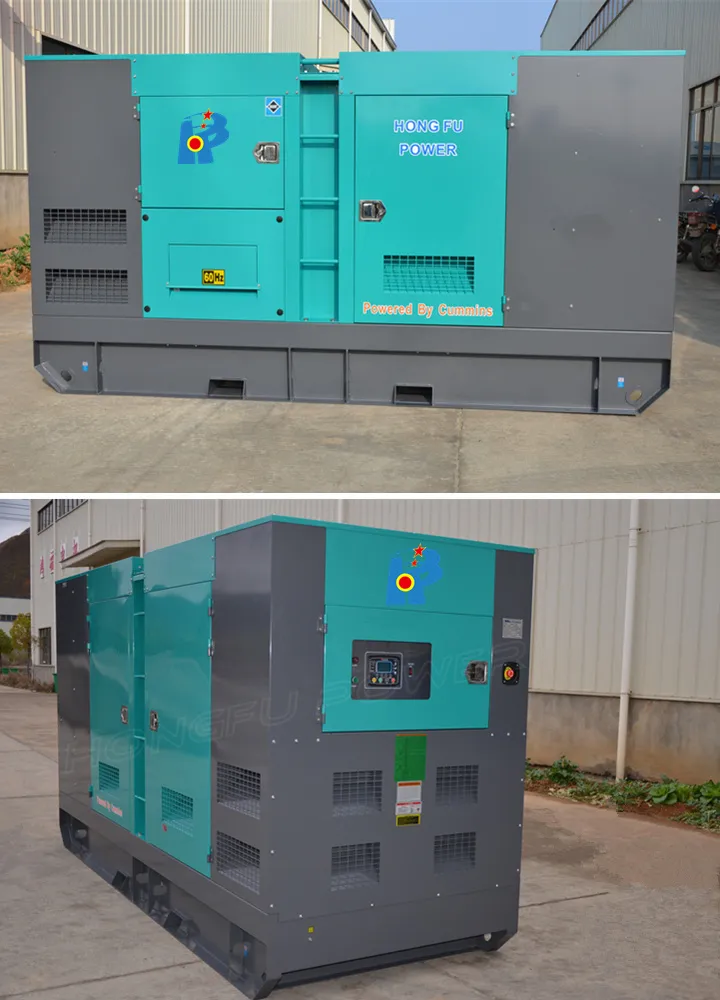

1,Canopy
Canopy raw material is galvanized and cold rolled steel also available, thickness reach to 2.5mm, surface are smooth & unsmooth for options, any types can be designed.
2,Fuel tank
Grounded fuel tank with forklift holes, consumption time can last for 10 hrs or longer.
3,Alternator
Copy Stamford brushless alternators are produced by HONGFU Factory, copper wires are adopted from listed company, Ball bearing is CAMEL brand and insulation is H class.
4,Silent Foam
Foam thickness is 4cm and with strong density, it is better for soundproof perfomance.
5,LED Light

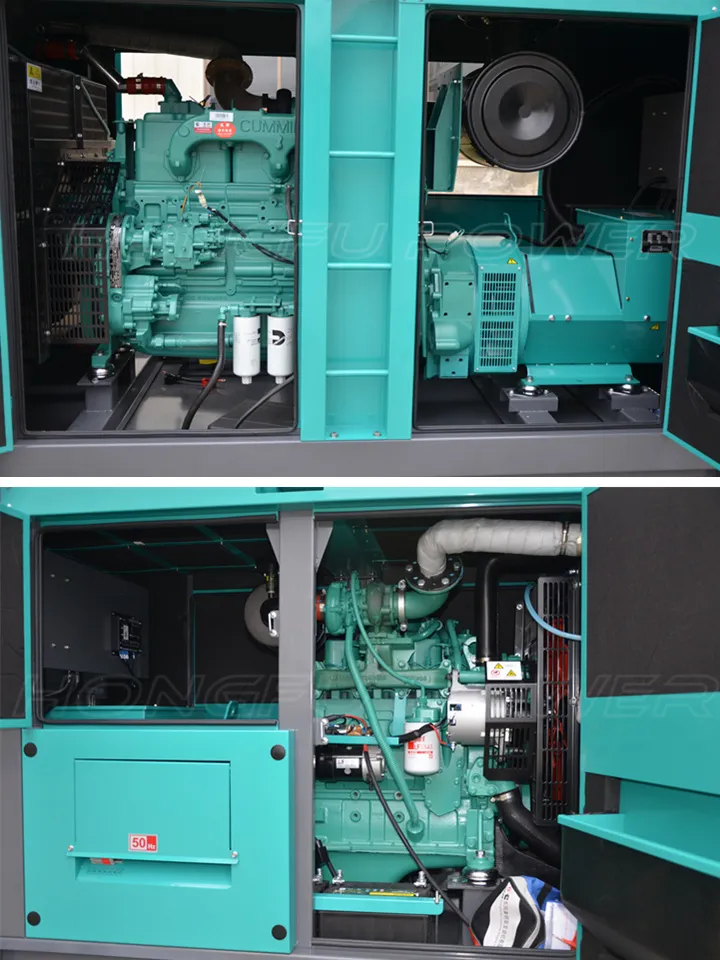

Generator inside install LED light for maintenance.
6,Controller
Control modules are SMARTGEN, DATAKOM, DEEPSEA and COMAP brands etc.
CHNT circuit breaker, SMARTGEN battery charger.
7,Governor
Governor with electric or mechanic system.
8,Battery
Maintenance-free battery in our adoption.
9,Type
Open, Silent/Super silent, Trailer types and so on.
10,Qualification
Our generator compliance with standards CCC/CE/IAF/ISO9001:2008 Quality management systems-Requirements.
Cummins Prime Power 150Kva Diesel Generator Set

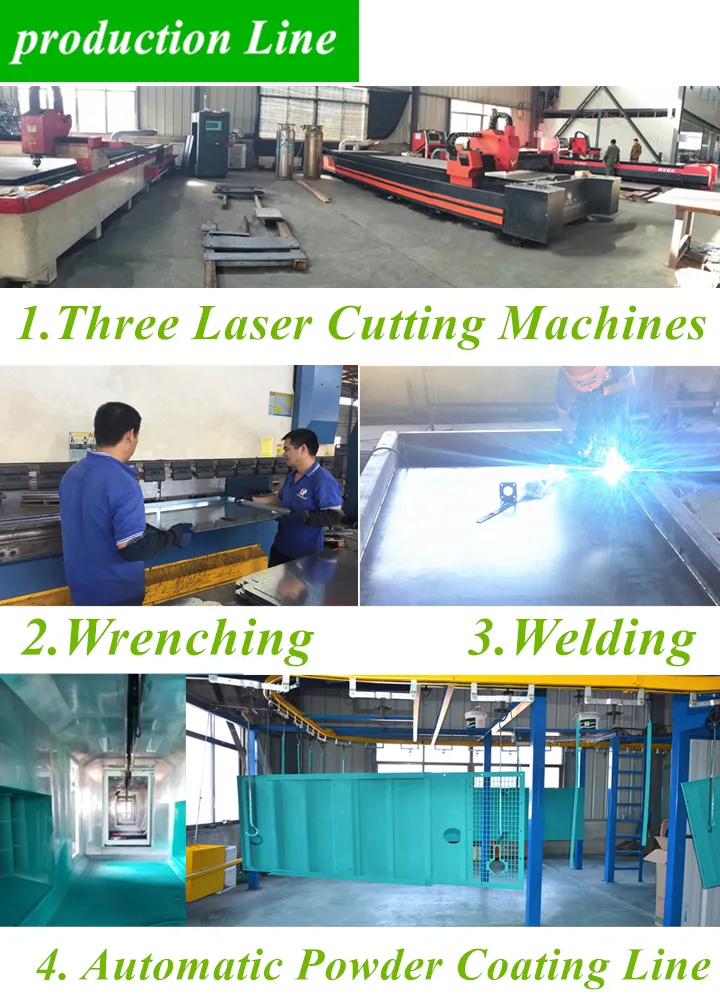

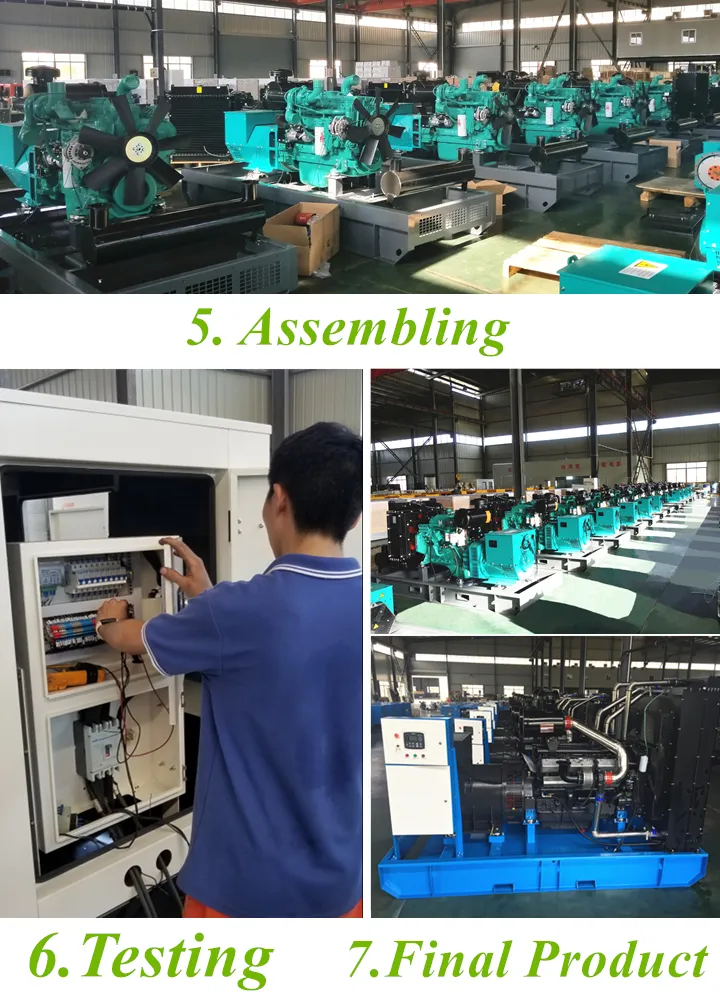

In facility, HONGFU factory with 2 workshops which covers 20000 square meters, we have 3 laser cutting machines, 2 wrenching machines, 1CNC pressing machine and 1 automatic powder coating line for canopy and fuel tank production.
From first production step to final loading. We show one by one above, let customer have a direct impression on how we produce our genset, we take every details seriously just for client's satifaction.
Hongfu Generator authorized by CE, and we are an ISO 9001 certified manufacturer. All of our products are with excellent performance.
Product Warranty Details
1.Hongfu generator guarantee for one year or 1000 hours from ex-factory date.
2.During the warranty period, we will provide the free spare parts. After expiration,
we provide chargeable sapre parts.
3.Global warranty engine, the maintenance will be settled by local Authorization Service Agent.
Standard configuration
1,Canopy
Canopy raw material is galvanized and cold rolled steel also available, thickness reach to 2.5mm, surface are smooth & unsmooth for options, any types can be designed.
2,Fuel tank
Grounded fuel tank with forklift holes, consumption time can last for 10 hrs or longer.
3,Alternator
Copy Stamford brushless alternators are produced by HONGFU Factory, copper wires are adopted from listed company, Ball bearing is CAMEL brand and insulation is H class.
4,Silent Foam
Foam thickness is 4cm and with strong density, it is better for soundproof perfomance.
5,LED Light
Generator inside install LED light for maintenance.
6,Controller
Control modules are SMARTGEN, DATAKOM, DEEPSEA and COMAP brands etc.
CHNT circuit breaker, SMARTGEN battery charger.
7,Governor
Governor with electric or mechanic system.
8,Battery
Maintenance-free battery in our adoption.
9,Type
Open, Silent/Super silent, Trailer types and so on.
10,Qualification
Our generator compliance with standards CCC/CE/IAF/ISO9001:2008 Quality management systems-Requirements.
Cummins Prime Power 150Kva Diesel Generator Set
| 50Hz CUMMINS Diesel Generator Specification | ||||||||||
| Genset Type | Prime Power (KW/KVA) | Standby Power (KW/KVA) | Cons 100% L/H | CUMMINS Engine | CYL | Displacement (L) | GOV | Hongfu Alternator | Dimension L*W*H (MM) | Weight (KG) |
| AJ-28C | 20/25 | 22/28 | 6.3 | 4B3.9-G1/24KW | 4L | 3.9 | ELECTRICAL | CJ184F/22KW | 1680*760*1350 | 980 |
| AJ-28C | 20/25 | 22/28 | 6.3 | 4B3.9-G2/24KW | 4L | 3.9 | ELECTRICAL | CJ184F/22KW | 1680*760*1350 | 980 |
| AJ-42C | 30/38 | 33/42 | 8.3 | 4BT3.9-G1/36KW | 4L | 3.9 | ELECTRICAL | CJ184H/30KW | 1900*800*1400 | 980 |
| AJ-42C | 30/38 | 33/42 | 8.3 | 4BT3.9-G2/36KW | 4L | 3.9 | ELECTRICAL | CJ184H/30KW | 1900*800*1400 | 980 |
| AJ-55C | 40/50 | 44/55 | 11.7 | 4BTA3.9-G2/50KW | 4L | 3.9 | ELECTRICAL | CJ224D/40KW | 1900*800*1400 | 1070 |
| AJ-70C | 50/63 | 55/70 | 13.6 | 4BTA3.9-G2/58KW | 4L | 3.9 | ELECTRICAL | CJ224E/48KW | 1900*800*1400 | 1070 |
| AJ-83C | 60/75 | 66/83 | 16.2 | 4BTA3.9-G11/70KW | 4L | 3.9 | ELECTRICAL | CJ224F/58KW | 1900*840*1340 | 1070 |
| AJ-100C | 68/85 | 75/95 | 19.5 | 6BT5.9-G1/86KW | 6L | 5.88 | MECHNICAL | CJ224G/68KW | 2150*920*1500 | 1200 |
| AJ-100C | 68/85 | 75/95 | 19.5 | 6BT5.9-G2/86KW | 6L | 5.88 | ELECTRICAL | CJ224G/68KW | 2150*920*1500 | 1200 |
| AJ-125C | 90/113 | 100/125 | 25.5 | 6BTA5.9-G2/106KW | 6L | 5.88 | ELECTRICAL | CJ274D/96KW | 2250*820*1430 | 1200 |
| AJ-140C | 100/125 | 110/138 | 29.5 | 6BTAA5.9-G2/120KW | 6L | 5.88 | ELECTRICAL | CJ274D/96KW | 2250*820*1430 | 1400 |
| AJ-165C | 120/150 | 132/165 | 34.8 | 6BTAA5.9-G12/140KW | 6L | 5.88 | ELECTRICAL | CJ274F/125KW | 2330*985*1590 | 1400 |
| AJ-200C | 145/182 | 160/20 0 | 41.6 | 6CTA8.3-G1/163KW | 6L | 8.3 | ELECTRICAL | CJ274G/145KW | 2450*1000*1535 | 1500 |
| AJ-220C | 160/200 | 186/220 | 43.3 | 6CTAA8.3-G2/183KW | 6L | 8.3 | ELECTRICAL | CJ274H/160KW | 2640*995*1700 | 1700 |
| AJ-250C | 180/225 | 200/250 | 47.8 | 6LTAA8.9-G2/220KW | 6L | 8.9 | ELECTRICAL | CJ274J/184KW | 2960*1100*1770 | 1750 |
| AJ-275C | 200/250 | 220/275 | 53 | MTA11-G2A/234KW | 6L | 10.80 | ELECTRICAL | CJ274K/200KW | 2650*1100*1820 | 2300 |
| AJ-345C | 250/313 | 275/345 | 68.3 | MTAA11-G3/282KW | 6L | 10.80 | ELECTRICAL | CJ444D/240KW | 2960*1100*1770 | 3300 |
| AJ-385C | 280/350 | 308/385 | 72 | NTA855-G2A/312KW | 6L | 14 | ELECTRICAL | CJ444E/280KW | 3050*1100*1820 | 3350 |
| AJ-415C | 300/375 | 330/413 | 83.5 | NTAA855-G7/343KW | 6L | 14 | ELECTRICAL | CJ444FS/300KW | 3050*1100*1820 | 4800 |
| AJ-440C | 320/400 | 352/440 | 87 | NTAA855-G7A/407KW | 6L | 14 | ELECTRICAL | CJ444F/320KW | 2650*1100*1820 | 4850 |
| AJ-500C | 364/455 | 400/500 | 95.6 | KTA19-G3/403KW | 6L | 18.9 | ELECTRICAL | CJ544C/360KW | 3070*1100*1930 | 4900 |
| AJ-550C | 400/500 | 440/550 | 97 | KTA19-G4/448KW | 6L | 18.9 | ELECTRICAL | CJ544D/400KW | 3070*1100*1930 | 4900 |
| AJ-660C | 480/600 | 528/660 | 126 | KTAA19-G6/570KW | 6L | 18.9 | ELECTRICAL | CJ544E/480KW | 3300*1200*1950 | 4800 |
| AJ-685C | 500/625 | 550/688 | 136 | KTAA19-G6A/610KW | 6L | 18.9 | ELECTRICAL | CJ544FS/500KW | 3300*1300*1950 | 4950 |
| AJ-715C | 520/650 | 572/715 | 145 | QSK19-G4/574KW | 6L | 37.8 | ELECTRICAL | CJ544F/536KW | 3610*1550*2100 | 7800 |
| AJ-825C | 600/750 | 660/825 | 167 | KTA38-G2/664KW | 12V | 37.8 | ELECTRICAL | CJ634B/600KW | 4450*1750*2350 | 7850 |
| AJ-880C | 640/800 | 704/880 | 169 | KTA38-G2B/711KW | 12V | 37.8 | ELECTRICAL | CJ634C/640KW | 4450*1750*2350 | 7950 |
| AJ-1000C | 728/910 | 800/1000 | 196 | KTA38-G2A/813KW | 12V | 37.8 | ELECTRICAL | CJ634D/728KW | 4450*1750*2350 | 8000 |
| AJ-1100C | 800/1000 | 880/1100 | 209 | KTA38-G5/880KW | 12V | 37.8 | ELECTRICAL | CJ634E/800KW | 4450*1750*2350 | 9800 |
| AJ-1250C | 904/1130 | 1000/1250 | 210 | KTA38-G9/1090KW | 16V | 37.8 | ELECTRICAL | CJ634F/904KW | 5200*2060*2300 | 11000 |
| AJ-1375C | 10/1250 | 1100/1375 | 254 | KTA50-G3/1097KW | 16V | 50 | ELECTRICAL | CJ634G/1000KW | 4450*1750*2352 | 14000 |
In facility, HONGFU factory with 2 workshops which covers 20000 square meters, we have 3 laser cutting machines, 2 wrenching machines, 1CNC pressing machine and 1 automatic powder coating line for canopy and fuel tank production.
Product Warranty Details
1.Hongfu generator guarantee for one year or 1000 hours from ex-factory date.
2.During the warranty period, we will provide the free spare parts. After expiration,
we provide chargeable sapre parts.
3.Global warranty engine, the maintenance will be settled by local Authorization Service Agent.
