Silent Cummins Diesel Generator Set with ISO&CE (25kVA-1500kVA)
25KVA-1500KVA Silent Diesel Generator Set Powered by Cummins Engine 1.Powered by Cummins Engine2. With Stamford / Leroy Somer / Marathon Alternator3. With CHINT / ABB MCCB & Electronic Components4. Electric Start with Battery5. Base Integrated Fuel Tank6. ATS, Deepsea / ComAp / Smartgen Controll......
Send Inquiry
Product Description

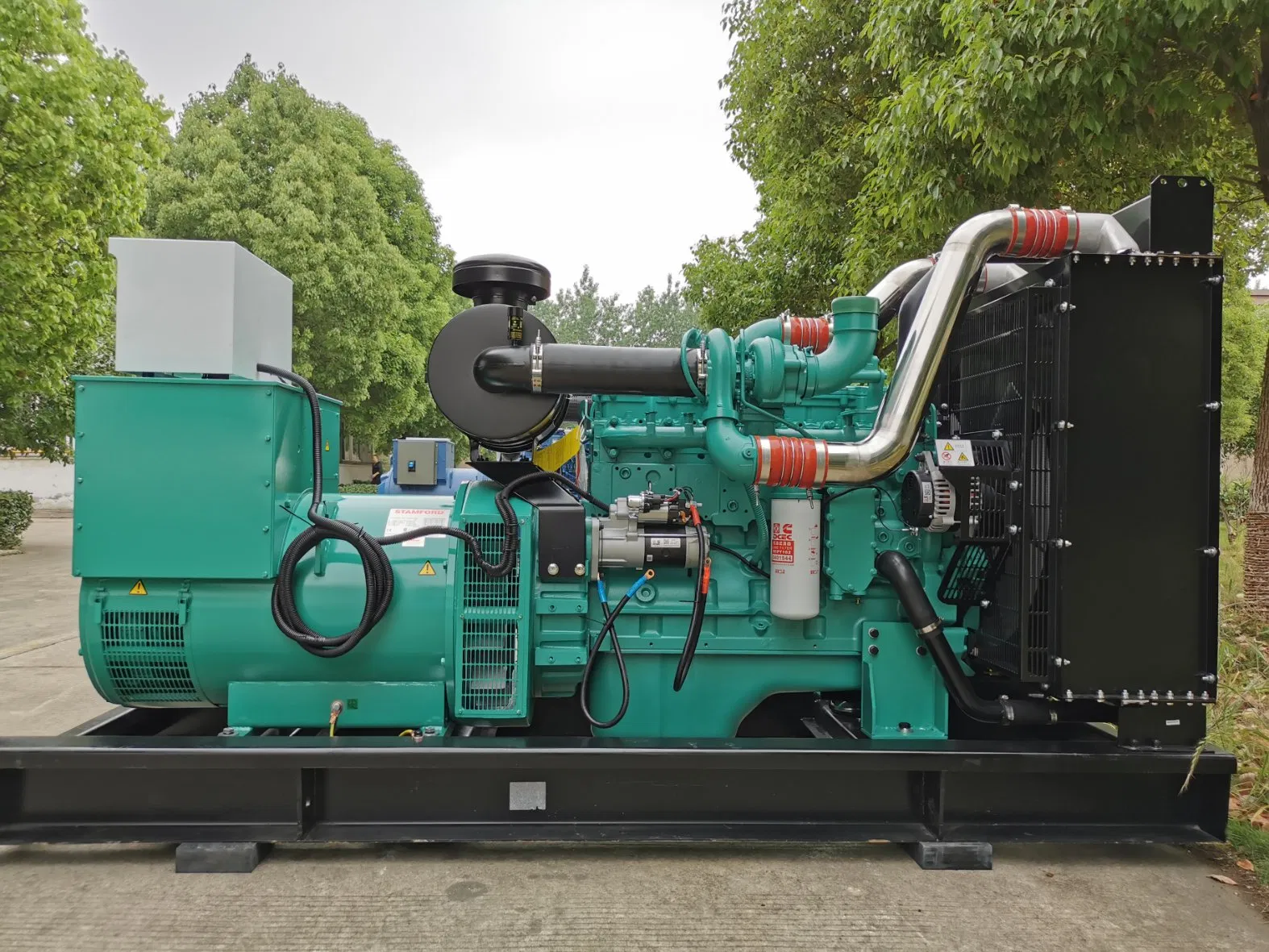

25KVA-1500KVA Silent Diesel Generator Set Powered by Cummins Engine
1.Powered by Cummins Engine2. With Stamford / Leroy Somer / Marathon Alternator
3. With CHINT / ABB MCCB & Electronic Components
4. Electric Start with Battery
5. Base Integrated Fuel Tank
6. ATS, Deepsea / ComAp / Smartgen Controller
7. Comply with ISO9001/CE
8. After-sale Services
Engine
*Heavy duty diesel engine
*Four stroke, water cooled
*12V and 24V stater and charge alternator
*Cooling radiator and fan
*Maintenance free battery including ract and cable
*Flexible fuel connection hoses and manual oil sump drain valve
*Exhaust silencer
Alternator
*Brushless, single bearing, flexible disc
*Insulation class: H
*Protection class: IP23
*Self-exciting and Self-regulation

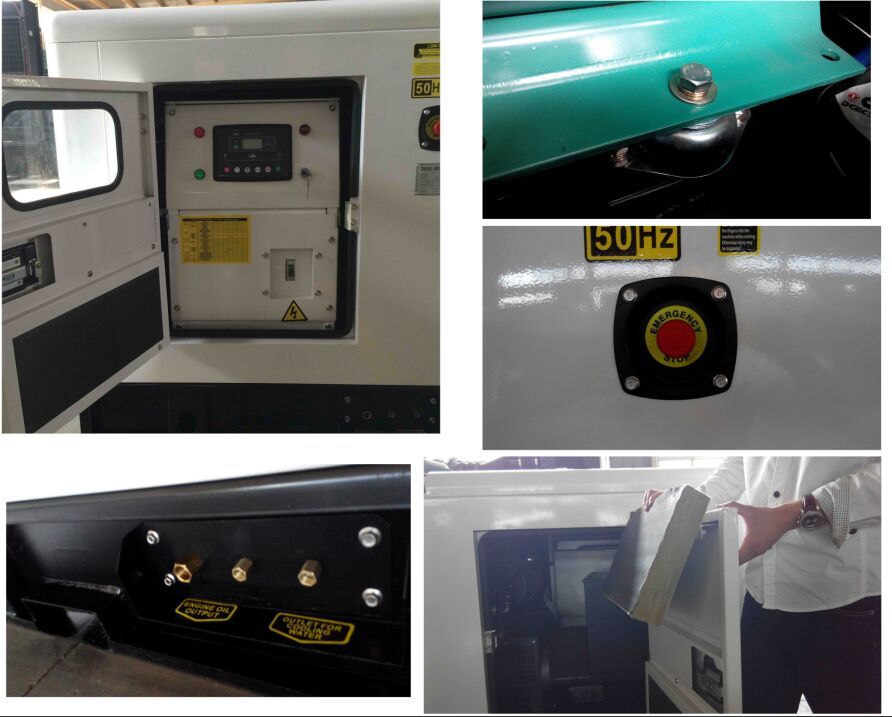

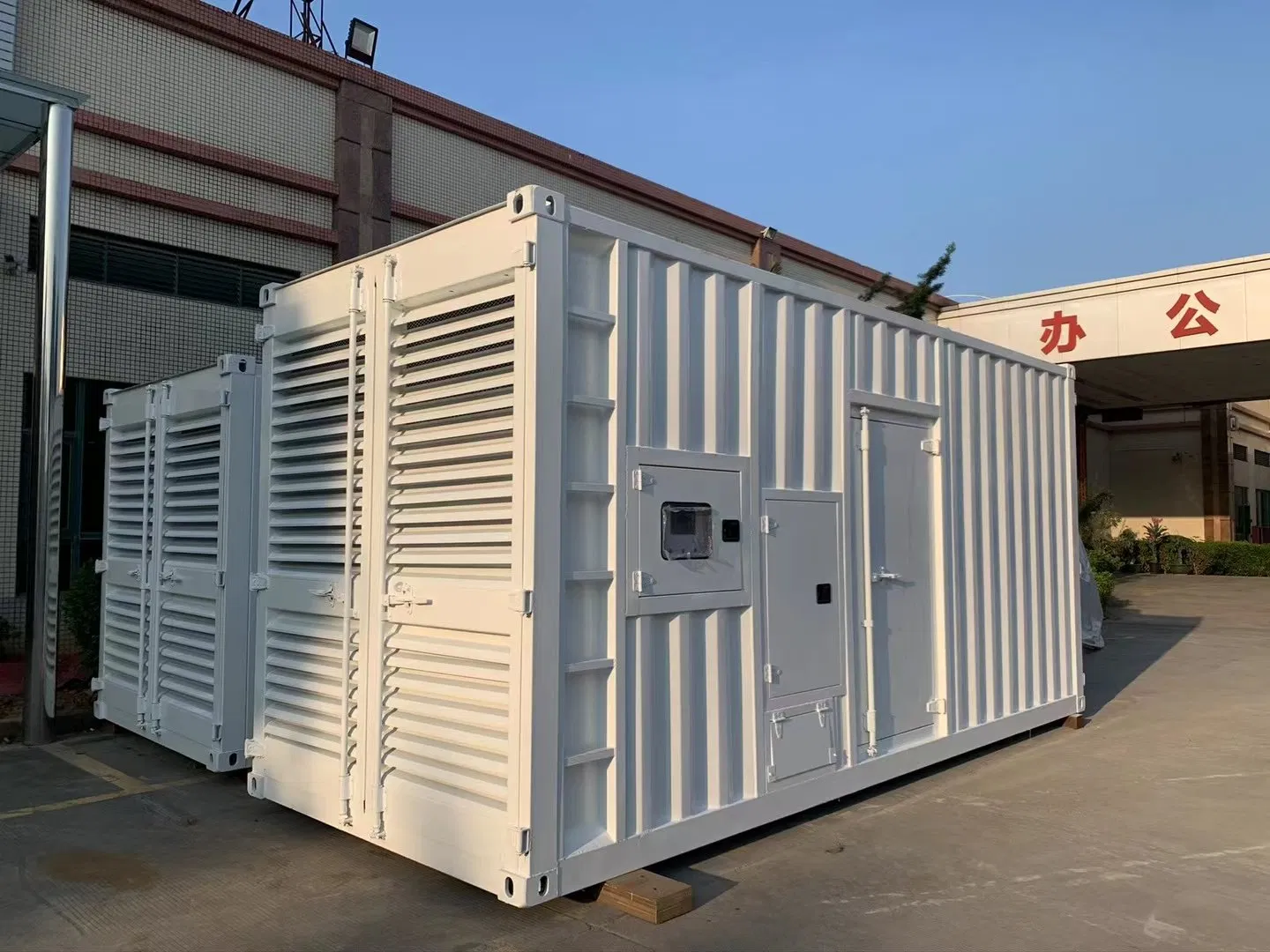

Canopy
*All canopy designed with modular principles
*All metal canopy parts painted by electrostatic polyester power paint
*Soundproof design ensure that the noise level be controlled in small scope
*Convenient to lift and move
*Easy to maintenance and operate
Base Frame
*Base frame including position for forklift and crane
*Integral fuel tank
*Daily fuel tank continuously supply for 8-24 hours
*Fuel tank easy to maintain and clean
*Anti-vibration pads are flexed between engine and alternator.
Control System
*Control, monitor and protect the Generator Set including:
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
*Emergency stop
| Genset Model | Prime Power (kva/kw) | Standby Power (kva/kw) | Engine Model | Cylinder | Bore*Strok (mm) | Disp (L) | Lube (L) | Open Type Size L*W*H(mm) | Weight (kgs) |
| HY-C28 | 25/20 | 27.5/22 | 4B3.9-G1/G2 | 4 | 102*120 | 3.9 | 11 | 1800*800*1150 | 750 |
| HY-C44 | 40/32 | 44/35.2 | 4BT3.9-G1/G2 | 4 | 102*120 | 3.9 | 11 | 1800*800*1150 | 780 |
| HY-C55 | 50/40 | 55/44 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 1800*800*1150 | 820 |
| HY-C66 | 60/48 | 66/52.8 | 4BTA3.9-G2 | 4 | 102*120 | 3.9 | 11 | 1800*800*1150 | 850 |
| HY-C83 | 75/60 | 82.5/66 | 4BTA3.9-G11 | 4 | 102*120 | 3.9 | 11 | 1900*800*1200 | 1100 |
| HY-C110 | 100/80 | 110/88 | 6BT5.9-G1/G2 | 6 | 102*120 | 5.9 | 17.3 | 2170*800*1200 | 1150 |
| HY-C138 | 125/100 | 137.5/110 | 6BTA5.9-G2 | 6 | 102*120 | 5.9 | 17.3 | 2300*800*1200 | 1200 |
| HY-C150 | 135/108 | 150/120 | 6BTAA5.9-G2 | 6 | 102*120 | 5.9 | 17.3 | 2300*800*1200 | 1300 |
| HY-C165 | 150/120 | 165/132 | 6BTAA5.9-G12 | 6 | 102*120 | 5.9 | 17.3 | 2300*800*1200 | 1400 |
| HY-C200 | 180/144 | 200/160 | 6CTA8.3-G2 | 6 | 114*135 | 8.3 | 27.6 | 2400*850*1400 | 1600 |
| HY-C220 | 200/160 | 220/176 | 6CTAA8.3-G2 | 6 | 114*135 | 8.3 | 27.6 | 2600*950*1500 | 1700 |
| HY-C275 | 250/200 | 275/220 | NT855-GA | 6 | 140*152 | 14 | 36.7 | 2900*1000*1500 | 2500 |
| HY-C300 | 275/220 | 300/240 | MTA11-G2A | 6 | 125*147 | 11 | 39 | 2750*1100*1650 | 2350 |
| HY-C330 | 300/240 | 330/264 | NTA855-G1A | 6 | 140*152 | 14 | 36.7 | 2900*1100*1650 | 2700 |
| HY-C344 | 312.5/250 | 344/275 | MTAA11-G3 | 6 | 125*147 | 11 | 39 | 2750*1100*1650 | 2500 |
| HY-C385 | 350/280 | 385/308 | NTA855-G2A | 6 | 140*152 | 14 | 36.7 | 2900*1100*1650 | 2800 |
| HY-C413 | 375/300 | 412.5/330 | NTA855-G4 | 6 | 140*152 | 14 | 36.7 | 2900*1100*1650 | 2900 |
| HY-C440 | 400/320 | 440/352 | NTAA855-G7A | 6 | 140*152 | 14 | 36.7 | 2900*1100*1650 | 3250 |
| HY-C500 | 450/360 | 500/400 | KTA19-G3 | 6 | 159*159 | 19 | 50 | 3100*1200*1700 | 3800 |
| HY-C550 | 500/400 | 550/440 | KTA19-G3A | 6 | 159*159 | 19 | 50 | 3200*1200*1700 | 4000 |
| HY-C620 | 562.5/450 | 620/496 | KTAA19-G5 | 6 | 159*159 | 19 | 50 | 3300*1300*1800 | 4300 |
| HY-C660 | 600/480 | 660/528 | KTA19-G8 | 6 | 159*159 | 19 | 50 | 3500*1400*2000 | 4500 |
| HY-C688 | 625/500 | 688/550 | KTAA19-G6A | 6 | 159*159 | 19 | 50 | 3500*1400*2000 | 4700 |
| HY-C825 | 750/600 | 825/660 | KTA38-G2 | 12 | 159*159 | 38 | 135 | 4400*1800*2400 | 6500 |
| HY-C900 | 825/660 | 900/720 | KTA38-G2B | 12 | 159*159 | 38 | 135 | 4500*1800*2400 | 6700 |
| HY-C1000 | 900/720 | 1000/800 | KTA38-G2A | 12 | 159*159 | 38 | 135 | 4600*1800*2400 | 7000 |
| HY-C1100 | 1000/800 | 1100/880 | KTA38-G5 | 12 | 159*159 | 38 | 135 | 4800*2000*2500 | 7500 |
| HY-C1250 | 1125/900 | 1250/1000 | KTA38-G9 | 12 | 159*159 | 38 | 135 | 4850*2200*2500 | 8000 |
| HY-C1375 | 1250/1000 | 1375/1100 | KTA50-G3 | 16 | 159*159 | 50 | 177 | 4850*2250*2500 | 9200 |
| HY-C1650 | 1500/1200 | 1650/1320 | KTA50-GS8 | 16 | 159*159 | 50 | 204 | 5000*2300*2500 | 9800 |
Optional:
| No. | Item name | Brand | Note |
| 1 | Silent Canopy | HEYUAN | Option |
| 2 | ATS system | ABB/SOCOMEC/HEYUAN | Option |
| 3 | Parallel system | Schneider/Delix/ABB | Option |
| 4 | Trailer | HEYUAN | Option |
| 5 | Water jacket preheater | HEYUAN | Option |
| 6 | Fuel tank | HEYUAN | Option |
| 7 | Cable | Standard | Option |
| 8 | Daily consumable spare parts | Cummins | Option |
| 8.1 | Fuel fliter | Cummins | Option |
| 8.2 | Air fliter | Cummins | Option |
| 8.3 | Oil fliter | Cummins | Option |

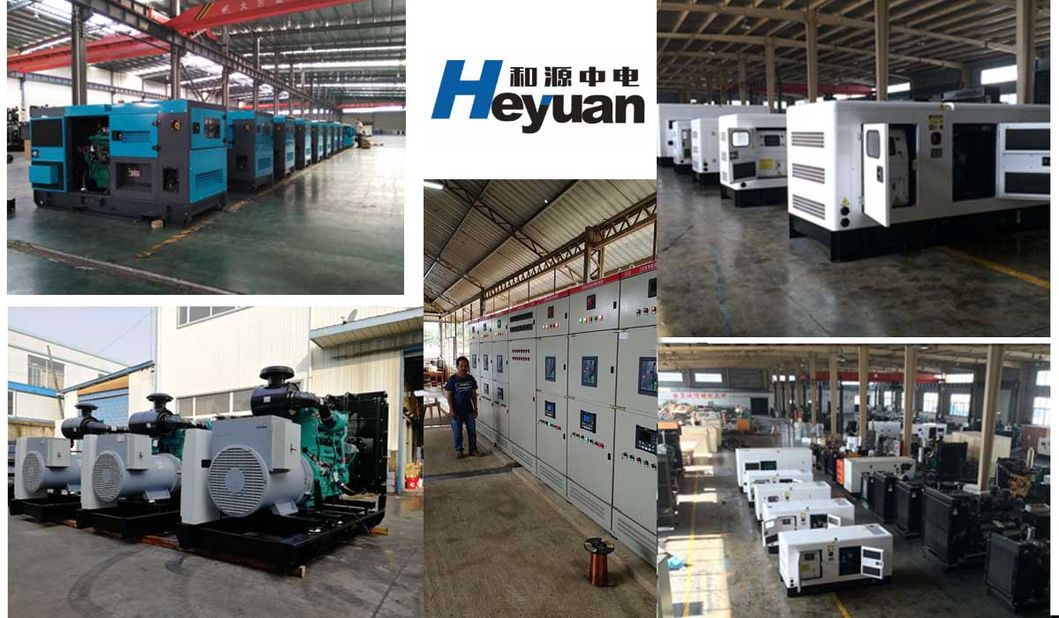

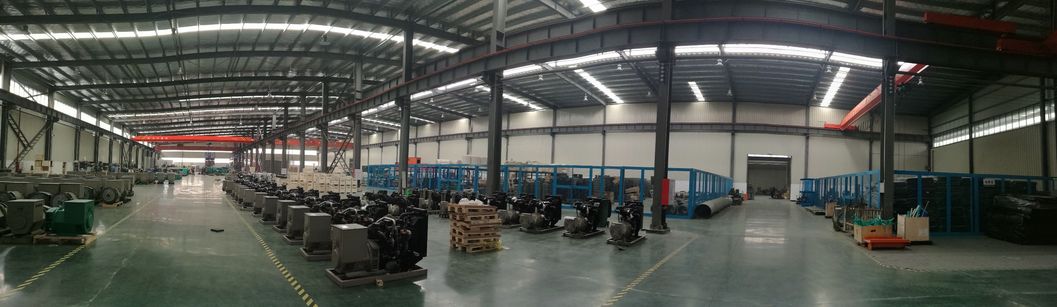

COMPANY

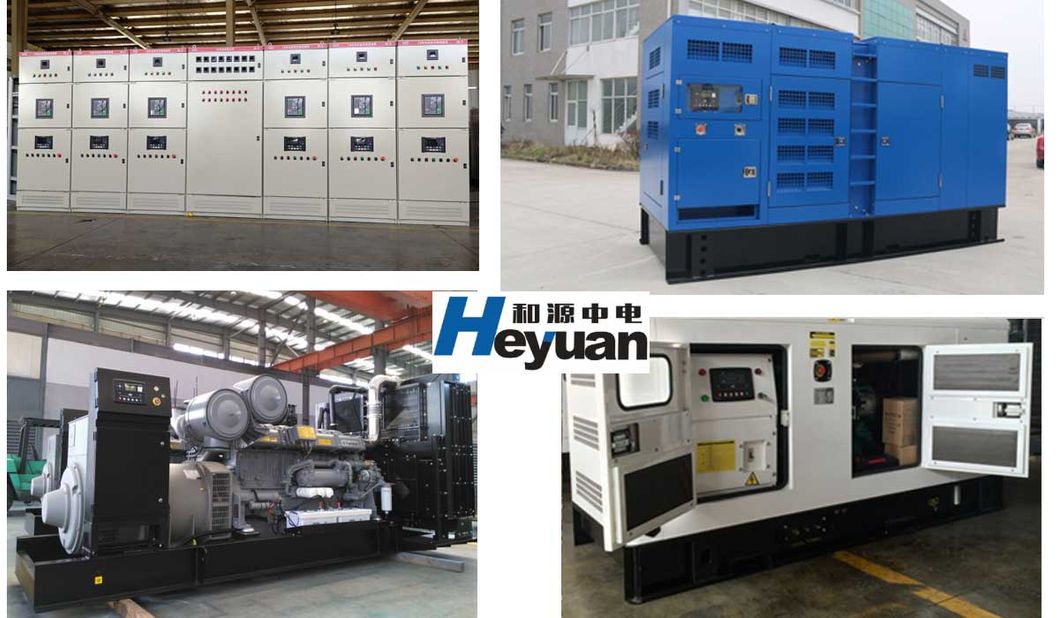

RELATED PRODUCT
You can choose other products on our website

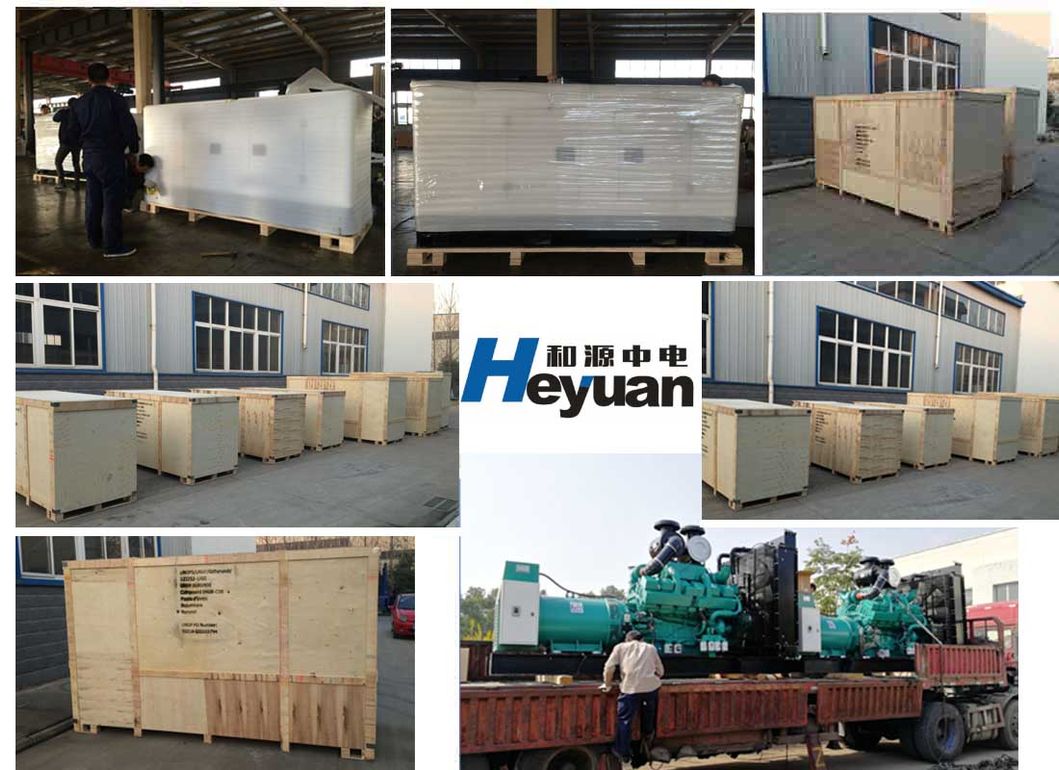

PACKAGE&Delivery
Stardard size plywood
Product details
QUANLITY

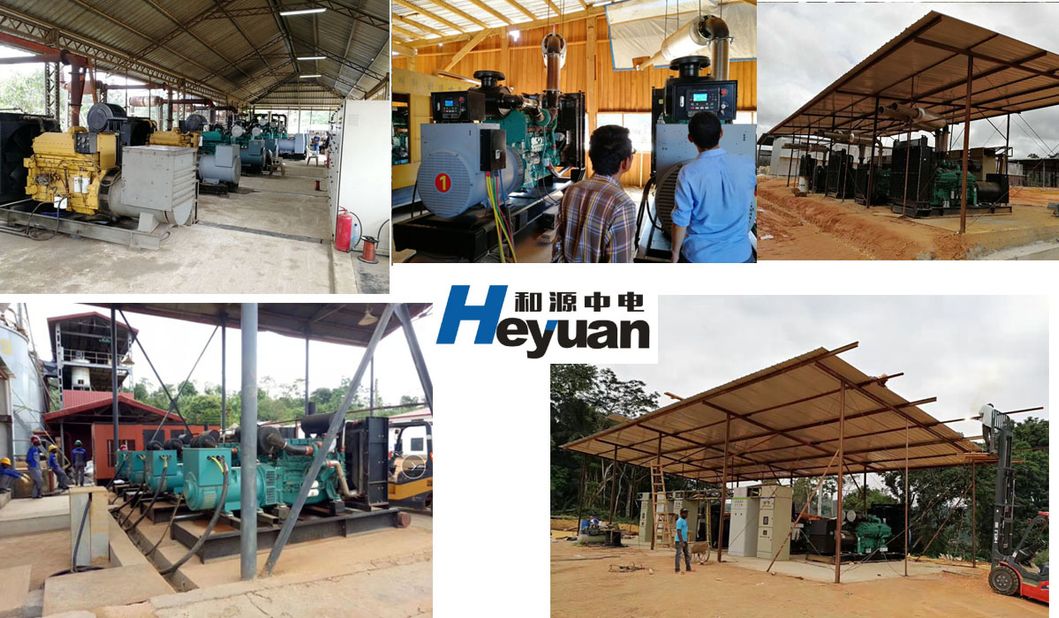

CUSTOMER DISPLAY
