Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA /350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

MAMO series products are widely used in hospital, shipping, finance, communication, hotel, commerce, real estate, factory and many other important fields.The main supporting products include DEUTZ, Shangchai, Volvo, Doosan, Isuzu, Kubota, Yanmar, Jichai , Yuchai, Mecc Alte, Marathon and Stamford, e......

Send Inquiry

Product Description

Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISOStationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

MAMO series products are widely used in hospital, shipping, finance, communication, hotel, commerce, real estate, factory and many other important fields.The main supporting products include DEUTZ, Shangchai,  Volvo, Doosan, Isuzu, Kubota, Yanmar, Jichai , Yuchai, Mecc Alte, Marathon and Stamford, etc.
Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

Product Description

MAMO supplying full ranges of Deutz (Huachai Deutz) generator drive engines, covers BF6M1015, BF8M1015 series engines, with standard cooling pack. We also supply engine accessories including cooling system, air intake system, air exhaust system, control system.

Built in 1970, Huachai Deutz is a China's state-owned enterprise, specializing in  engine manufacturing under Deutz manufacturing license. That is, Huachai Deutz bring engine technology from Germany Deutz compoany and is authorized to manufacture Deutz engine in China with Deutz logo and upgrading technology. Huachai Deutz company is the only authorized company in the world who manufacturing 1015 seires & 2015 series .It can power genset ranging from 177kw to 660kw.

Detailed Photos

Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISOStationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

Product Parameters


GENSET MODELPRIME POWERPRIME POWERSTANDBY POWERSTANDBY POWERENGINE MODEL EngineOPENSOUNDPROOFTRAILER
Rated POWER
(KW)(KVA)(KW)(KVA)(KW)
TBF250180225200250BF6M1015-LAGA208OOO
TBF275200250220275BF6M1015C-LAG1A228OOO
TBF303220275242303BF6M1015C-LAG2A256OOO
TBF344250312.5275344BF6M1015C-LAG3A282OOO
TBF385280350308385BF6M1015C-LAG4310OOO
TBF413300375330413BF6M1015CP-LAG328OOO
TBF481350438385481BF8M1015C-LAG1A388OOO
TBF500360450396495BF8M1015C-LAG2403OOO
TBF523380475418523BF8M1015CP-LAG1A413OOO
TBF550400500440550BF8M1015CP-LAG2448OOO
TBF564410512.5451564BF8M1015CP-LAG3458OOO
TBF591430537.5473591BF8M1015CP-LAG4480OOO
TBF625450562.5500625BF8M1015CP-LAG5509OOO
TBF756550687.5605756HC12V132ZL-LAG1A600OOO
TBF825600750660825HC12V132ZL-LAG2A666OOO



Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

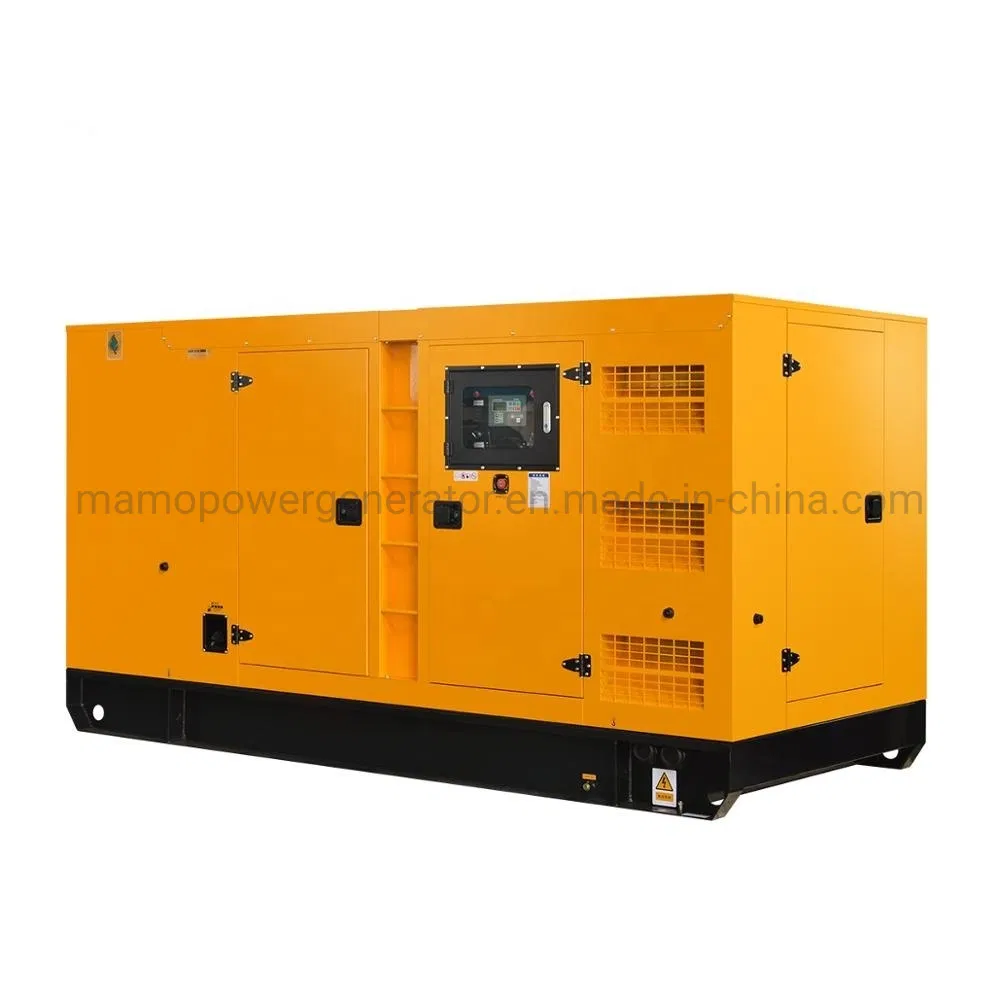

★ Cold steel materials of the canopy.
★ Best powder paint.
★ Zinc plated and Corrosion resistance.
★ Elegant appearance and reliable quality.
★ Stainless steel locks and hinges.
★ Access to all weather conditions.
★ Fireproof, waterproof and dustproof.
★ High quality soundproof materials could efficiently
     reduce noise.
★ Big base fuel tank in the frame guarantee sufficient
     diesel supply.
★ 180° revolvable and disassemble door for easy
     maintenance.
★ Concave lockable access door for easy operation
     and indefectible.
★ Lights inside of the canopy for maintenance.



Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

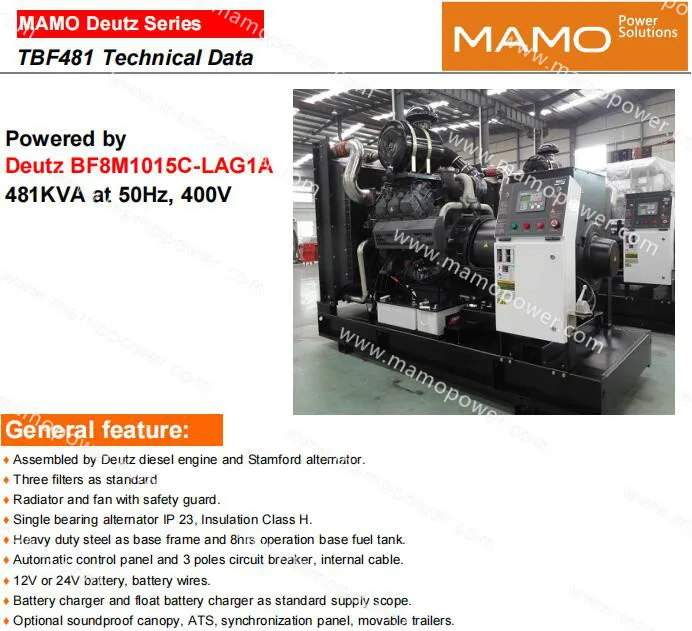

Genset Main Technical Data:

Genset ModelTBF481
Prime Power(50HZ)350KW / 437KVA
Standby Power(50HZ)385KW / 481KVA
Frequency/Speed50Hz/1500rpm
Standard Voltage400V/230V
PhasesThree phases, four wires
ManufacturerMAMO POWER TECHNOLOGY CO., LTD.

(1) PRP: Prime Power is available for an unlimited number of annual operating hours in variable load applications, in
     accordance with ISO8528-1. A 10% overload capability is available for a period of 1 hour within 12-hour period of
     operation. In accordance with ISO 3046-1.
(2) ESP: The Standby Power Rating is applicable for supplying emergency power in variable load applications for
     up to 200 hours per year in accordance with ISO8528-1. Overload is not allowed.
Deutz Engine Data:

Manufacturer  Deutz Engine CO., LTD
ModelBF8M1015C-LAG1A
Engine speed1500rpm
Engine power
--------------------Standby power460kw
--------------------Prime power418kw
Type4 cycle, In-line, 8-cylinder
AspirationTurbocharged and Aftercooled
GovernorElectronic
Bore * Stroke132*145 mm
Displacement15.87L
Governor Regulation:≤5%
ALTERNATOR Specifications:

Manufacturer Stamford/ Leroy Somer/ Mecc Alte
ModelHCI 544C/ LSA/ TAL/ ECP
Output powerPrime:400kW 500kVA / Standby:416kW 520kVA
AVR modelAS440
Number of phase3
Power factor (Cos Phi)0.8
Altitude 1000 m
Overspeed2250RPM
Number of Pole 4
Exciter typeSelf exciting/ Shunt
Insulation class H
ProtectionIP23
Voltage regulation±1%
Waveform distortionno load < 1.5% non-distorting balanced linear load < 5.0%
Telephone interferenceTHF< 2%
Bearing  single
CouplingDirect

Strict Testing Before Delivery

Mamo POWER provides a full line of completely brand new and high quality products.
Each and every unit is strictly factory tested before shipment.

√ 1 Hour Testing

√ Fuel tank pressure testing
√ Parts faults testing
√ Bolt tightening torque testing
√ Painting thickness testing
√ Frequency & Voltage Testing
√ Automatic Start Testing
√ Routine Fault Alarm Testing
√ Downtime test
√ Noise testing
√ Loading Testing: 25%, 50%, 75%, 100%, 110% loading to check verify that all control systems, alarm and shut-down protection.

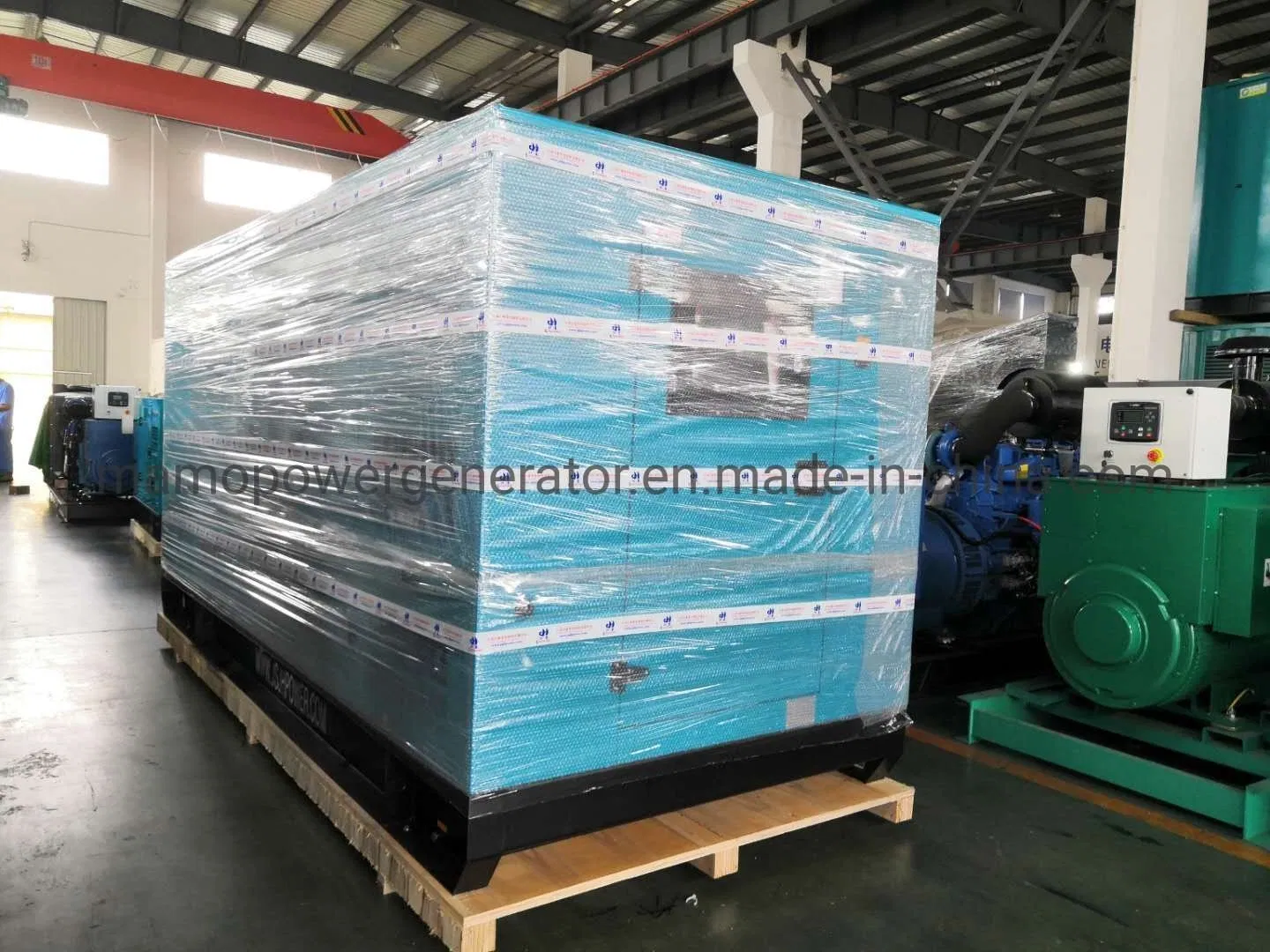

Packaging & Shipping

Standard Packing: Film plastic

Optional: Plywood Case

Delivery:
Approximately 2-4 weeks
 upon order confirmation

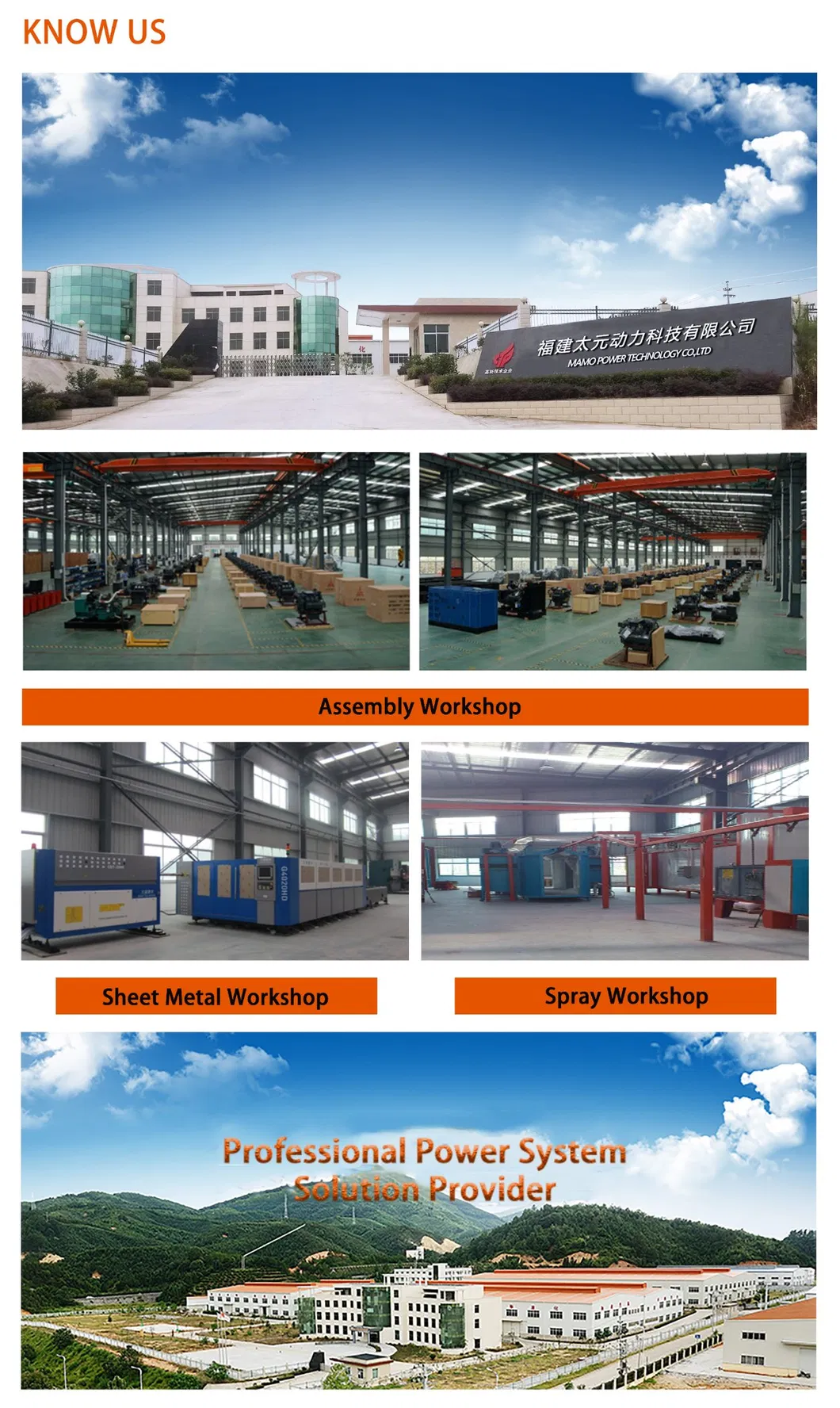

Company Profile



Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO
Mamo Power Technology Co.,Ltd (Mamo Power for short), High-Tech Enterprise, was established in 2004 and is located in forefront of  West Strait Economic Zone, Fujian Province. Manufacturing base covers an area of 62000 square meters. Our power products cover diesel and gas gensets range from 5kva to 3300kva which are widely used in Ships, Financials, Telecom, Hospitals, Hotels, Real estates, Factories, Minings, Tunnels, High-ways and so on.
Mamo Power products passed CE Certificate, SGS, IEC60034 Testing, got ISO9001 approval and won a highly reputation in oversea and domestic markets. With the spirit of "excellent quality, sincere service", Mamo Power specializes in manufacturing generator sets for many years, committing to the improvement of generator set technology and innovation. Mamo won good reputation and praise from our customers with high quality products.

★MAMO Engineering provides a full line of brand new and high quality products. Each and every unit is strictly
    factory tested before shipment.
★Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours,
    whichever comes first.
★Service and parts are available from MAMO POWER TECHNOLOGY CO., LTD. or distributors in your location.
★All the products from MAMO POWER TECHNOLOGY CO., LTD. is CE marked.

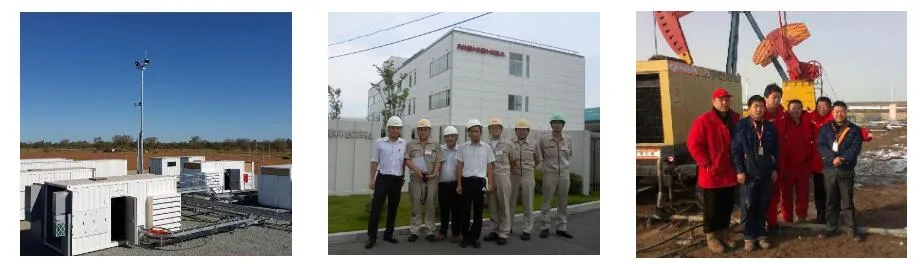

Valued Projects by Mamo Power

Container Genset in Austrailia                               Cooperating with Nishishiba               Gensets used in Oil rig                        with Volvo Engines

Stationary Enclosed Gen Set Deutz Engine Bf8m1015 438kVA/350kw Prime 481kVA/385kw Standy Power Electrc Diesel Genset Generators with CE ISO

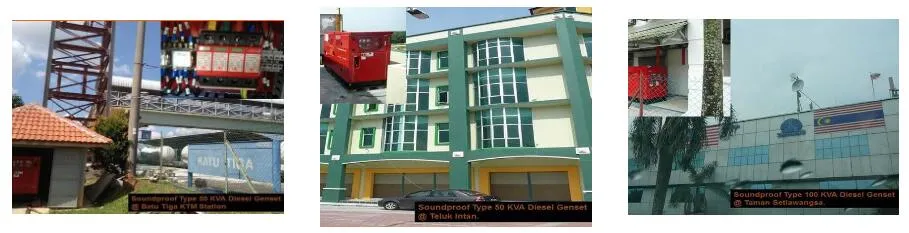

Customized Generator for Malaysian Telecom
