2021 New 75GF Vertical Drilling Tool Dynamotor for Oil Drilling Tool

Vertical Drilling System Tools generators belong to the underground drilling device of auxiliary equipment,special equipment used for oil extraction power supply. As the underground power supply is limited, the transmitter or the use of underground power generator, or battery powered. But battery life is short, and expensive. Therefore, the use of underground power generator, providing long life for the underground, high temperature, high reliability power supply, the sensor probe to detect the inclination, azimuth, tool face angle and formation parameters in real time with electromagnetic waves sent to the ground. Ground system data collection, processing engineers appear to Inoue.

1.1 Technical characteristics
(1)16 Poles, Voltage tuned on customer request
(2)20 years life design
(3)High temperature resistant design
(4)High pressure, with a maintenance-free, high reliability
(5)Low friction bearings
(6)Nominal speed ~100rpm, Max speed up to 3000 rpm
(7)Starting and cogging torque minimized
(8)Efficiency >90%
(9)Good cooling effect

Parameters :

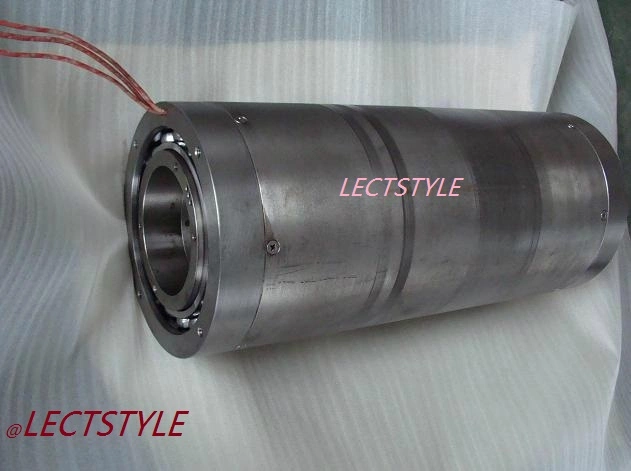

Product Picture


Application Picture :Vertical Drilling System Tools for oil

Package Picture

Our Advantage

We focused on the development and application of renewable energy products, having a first-class R&D team, through "people-oriented" design concept, to strive to innovate product performance and inprove product quality continuously to satisfy the demand of the market. We can develop and produce specific products to meet the needs of different industires according to the customer's specific requirement.
All parameters could be customized based on your special requirement........
